5.3 Maintenance, cont'd.
No.
Item
4
Check and adjust condition
of nozzle ejecting (non-fire
or misalignment) and regis-
tration
5
Check colour evenness and
execute head shading
6
Replacement of ink cartridge
7
Check the breath tank, disas-
semble and clean around
pump unit
Intermec ColorCoder V4 – Service Manual Ed. 1
Description
Printing out [NOZZLE CHECK PATTERN], check nozzle eject-
ing condition.
Execute [CLEANING (A)] or [CLEANING (B)], if non-fire or
misalignment found. When still unsolved, clean the head and
around the restoration tub.
When outstanding is vertical streak on image, though head nozzle
is ejecting in well-conditioned or when replacement of head.
Remake head shading data and recopy to host computer.
Ink recycle system is installed in the printer, taking waste ink
appeared through head cleaning operation and put it back to reuse
for printing, ink cartridge, even if ink remains in the ink cartridge,
however, should be replaced with new one to prevent excessive ink
viscosity caused by water evaporating in the long time.
This is included in the customer's required maintenance, but
positive replacement at the periodic maintenance is preferable.

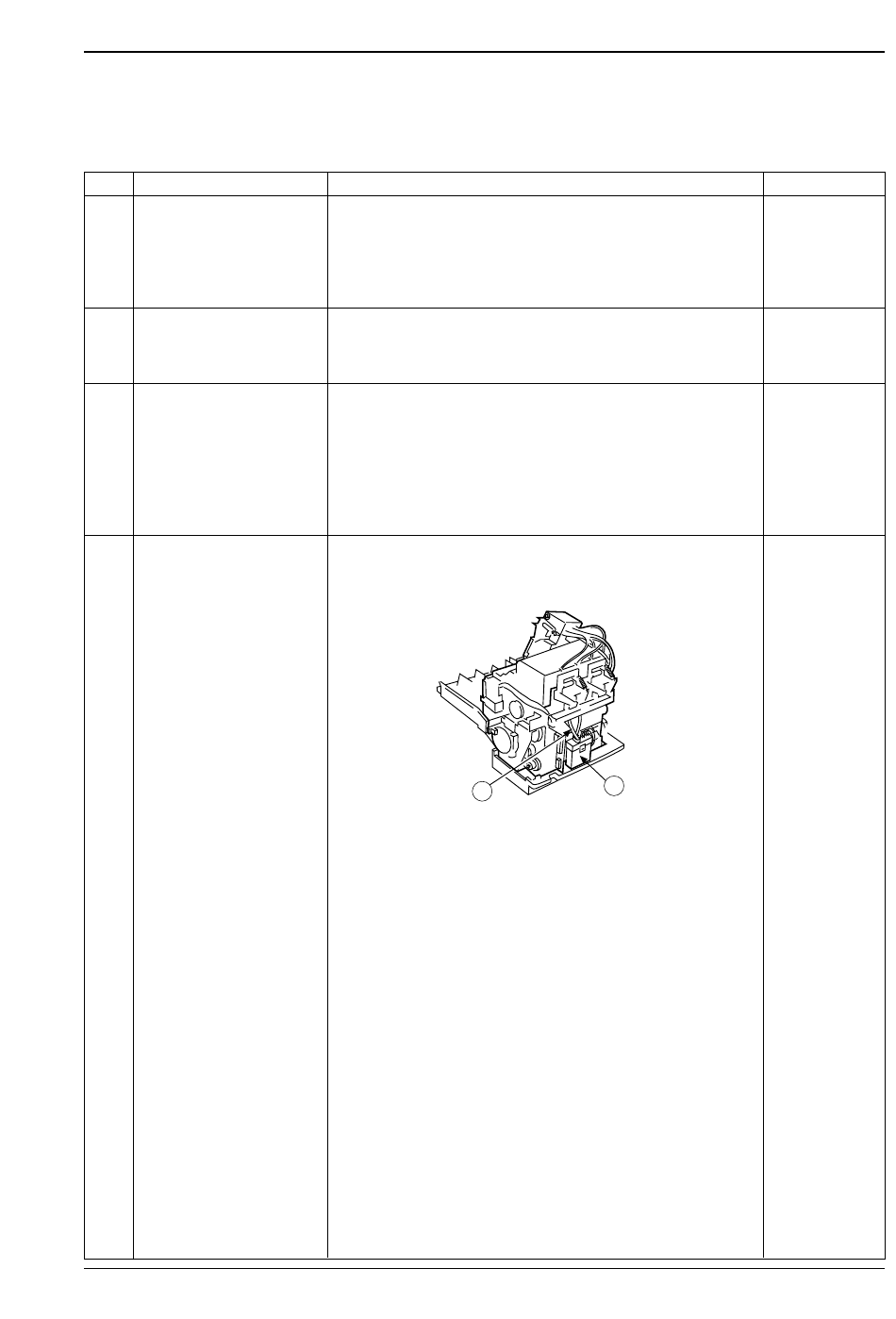

Check whether ink is running out from the overflow tube (1) into
the breath ink tub (2) or not. Replace the breath ink tub if necessary.
Remove and clean ink around the pump unit.
1
Chapter 5 Maintenance and Servicing
2
Figure 5-3
Interval
after printing
200,000 –
500,000 sheets
after printing
200,000 –
500,000 sheets
after 1 year
after printing
700,000 –
1,000,000 sheets
177
