6.9 Layout/Functions of Electrical Parts, cont'd.

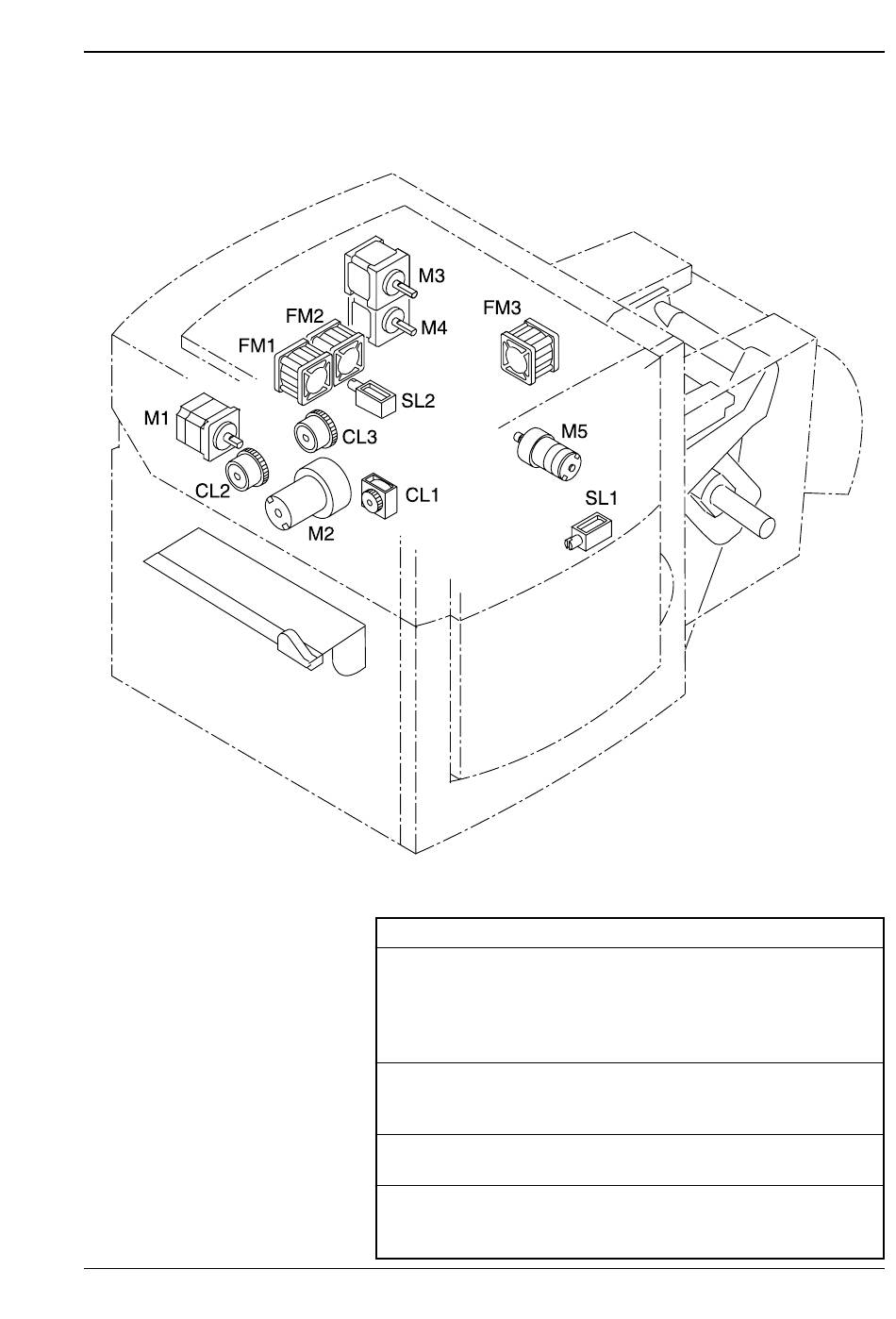

6.9:B Motors and Solenoids
Intermec ColorCoder V4 – Service Manual Ed. 1
Name Designation Function/Nomenclature
Motor M1
M2
M3
M4
M5
Fan Motor FM1
FM2
FM3
Solenoid SL1
SL2
Clutch CL1
CL2
CL3
Chapter 6 Troubleshooting
Feeder Motor
Pump Motor
Head Motor
Cap Motor
Roll Motor
Head Cooling Fan Motor
Head Cooling Fan Motor
Head Cooling Fan Motor
PHS Lock Solenoid
Latch Solenoid
Cam Pressure Release Clutch
Pressure Clutch
Suction Clutch
