6.4 Head Shading, cont'd.
6.4:B Procedure to Make HS Data,
cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Creating new HS data for C, M, and Y, cont'd.

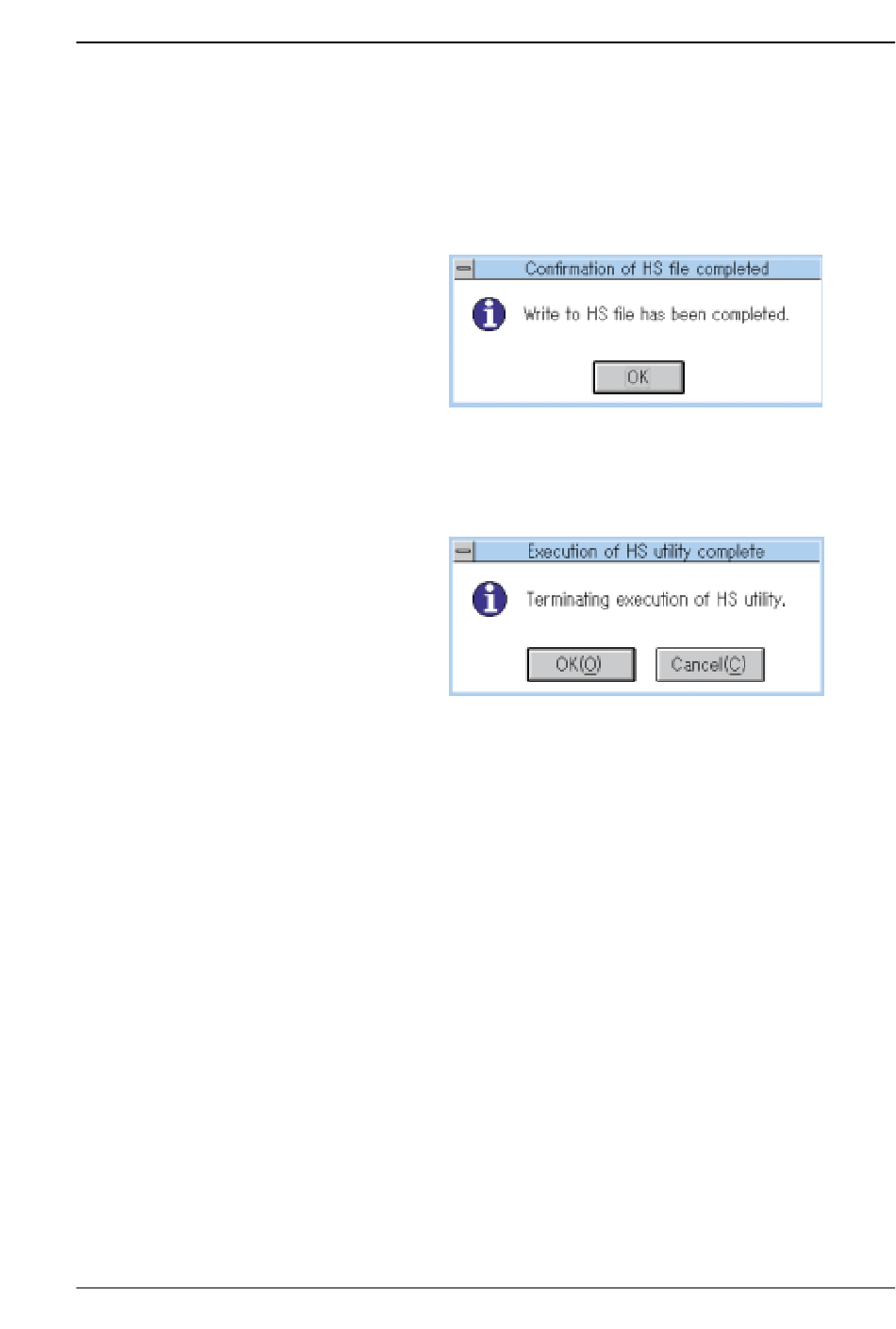

14. "Write to HS file has been completed." appears on the display
to confirm, click "OK".
15. Click "Exit" in the HS utility menu.
16. When "Terminating execution of HS utility." appears on the
display, click "OK" to finish the HS utility.
Chapter 6 Troubleshooting
Figure 6-26
Figure 6-27
