2.3 Ink Supply System, cont'd.
2.3:C Ink Cartridge
Ink returning joint
Ink supply joint
Intermec ColorCoder V4 – Service Manual Ed. 1

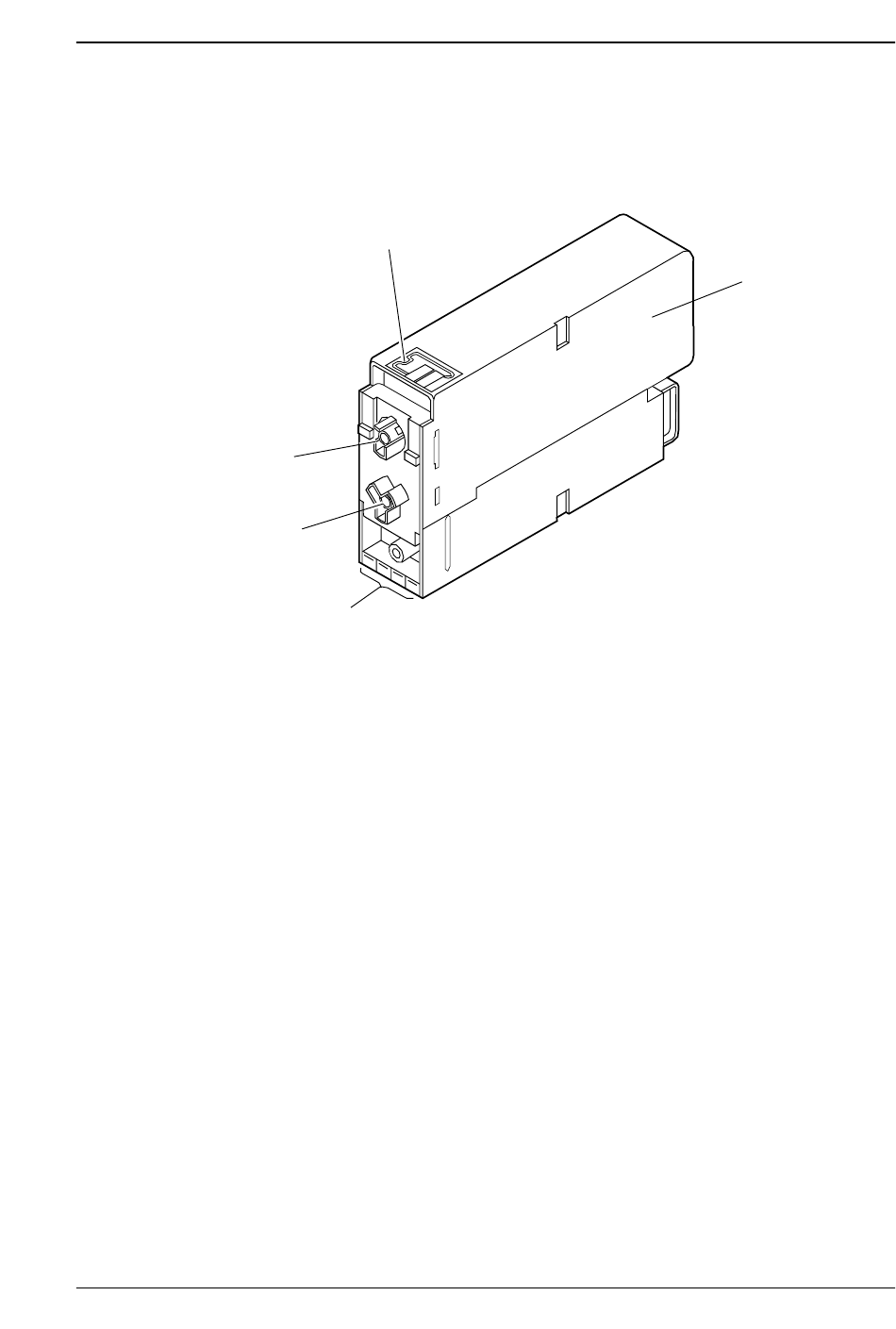

The outside view of the ink cartridge is shown in Figure 2-41 below.
Cartridge detection contact
Slots to prevent misinsert
The following outlines the function of each part.
• Ink tank
• Cartridge detection contacts Contacts for being detected the pres-
• Slots to prevent misinsert
Chapter 2
Figure 2-41
Operation and Timing
Ink tank
Stores ink to be used for printing.
ence or absence of the cartridge by
printer.
Slots to ensure that the ink cartridge
is inserted into the fixed position
for each colour. The cartridge can
not be inserted into wrong position.
