3.3 Ink Supply System, cont'd.
3.3:B Pump Unit, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Detaching the Parts and Units, cont'd.
Detaching the Needle Block, cont'd.
4. Remove the four mounting screw (2) from the needle block (1).
Warning:
The needle block of the pump unit is sharp in it's tips and is dangerous. Care
should be taken for handling. And always put the needle cover on the tips of
the needle block, when detached. When disposing of it, careful action should
be carried out to make sure the safety, such as, crushing the tips and wrapping
it with durable protection.
Chapter 3 Mechanical System

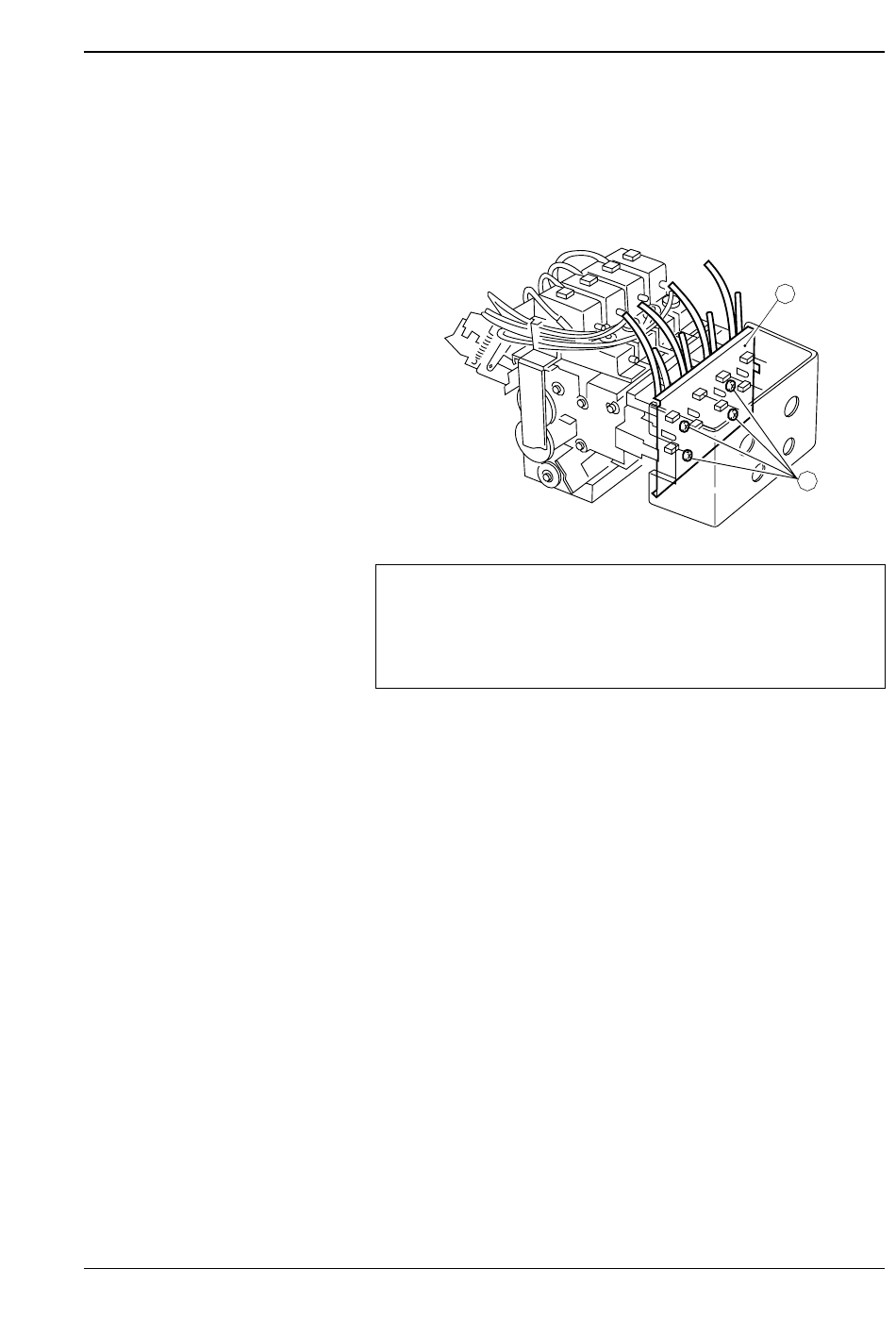

Figure 3-72
1
2
