4.2 Unpacking and Installation, cont'd.
4.2:B Installation (roll type), cont'd.
No. Procedure

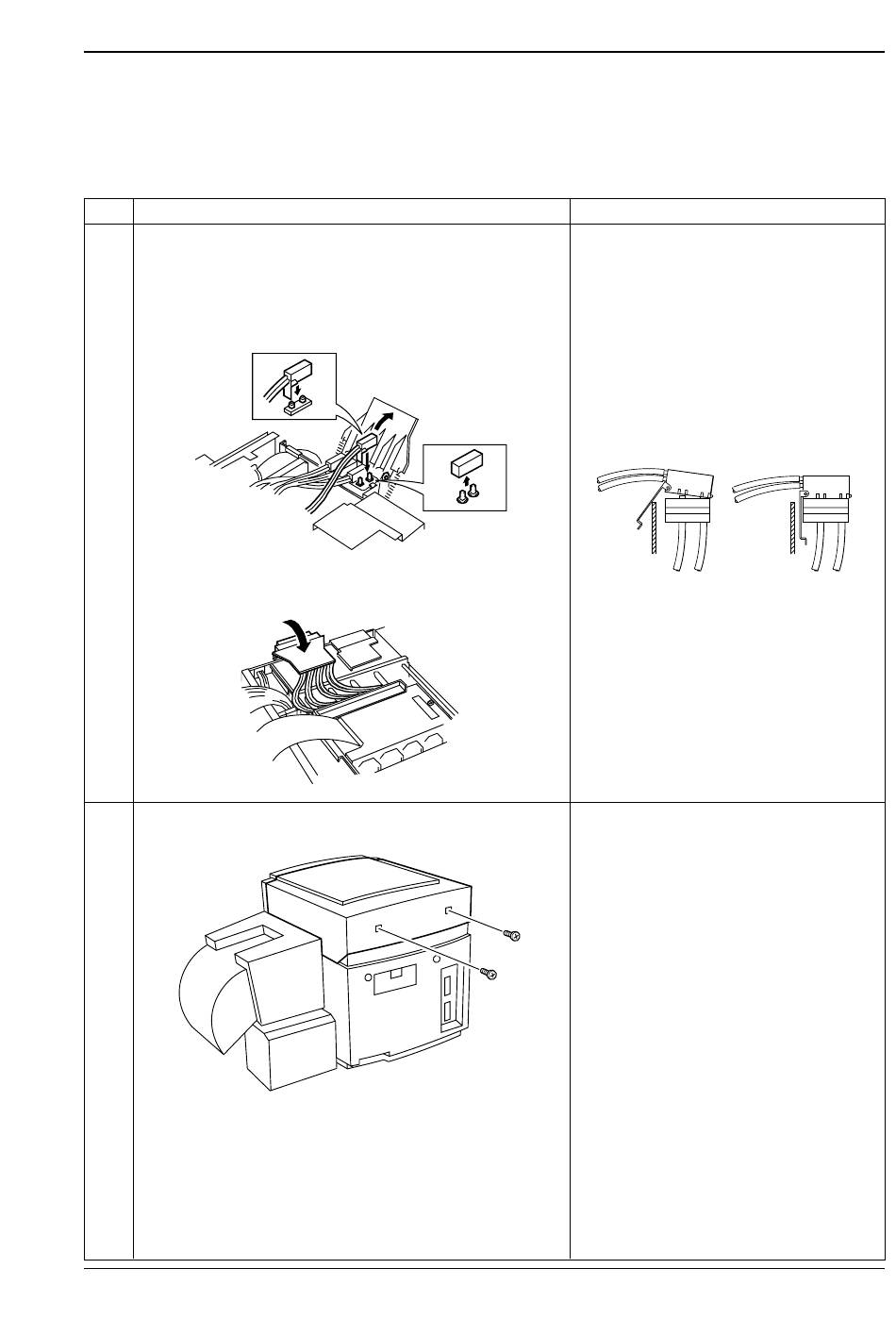

7 Connecting tube connector:
1. Open the tube release lever.
2. Take off the transportation connector.
3. Remove the bagfrom tube connectors.
4. Take off the connector packingfrom the tube connectors and
connect the tube connectors to tube station.
5. Close the tube release lever.
8 Attach the PHS cover.
Intermec ColorCoder V4 – Service Manual Ed. 1
Chapter 4
Inspection/Remarks
Keep the shipping connectors and the connector
packing for use when the machine is being
transported, etc.
Caution:
If the head connector cover is put over the metal
plate when the head connector is connected
as illustrated below, ink may leak from the tube
station.
WRONG
Check for ink leaking out around the platen.
If the machine is to be relocated inside rooms
after installing the covers, raise the opening/
closing arm as described in Chapter 4.2:F.
Relocation and Transportation before moving
the machine. After relocating, push the opening/
closing arm down.
Installation
CORRECT
