3.4 Pick Up/Feeder System, cont'd.
3.4:A Roll Unit, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Removing the Roll Drive Unit, cont'd.
Removing the Roll Drive Shaft, cont'd.

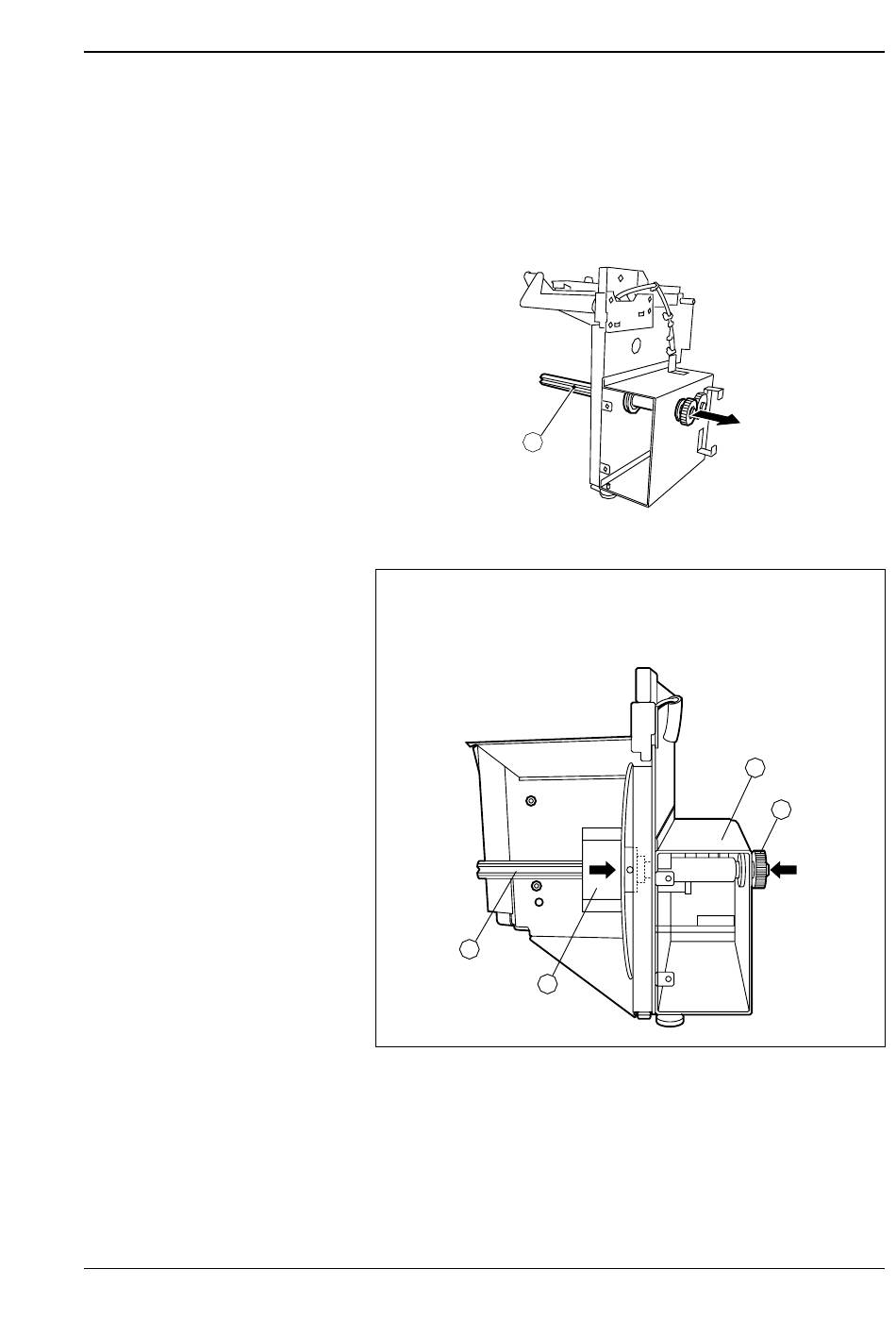

5. Pull out the roll drive shaft (1).
1
Caution for installation of roll drive shaft
When installing the roll drive shaft (1), push the drive gear (2) against the
motor bracket (3) (in arrow mark direction) to eliminate play in the drive shaft,
and then fix the roll drive shaft holding the roll retainer (inner) (4).
1
4
Chapter 3 Mechanical System
Figure 3-82
3
2
