3.5:D Engine 2 PCB
Intermec ColorCoder V4 – Service Manual Ed. 1

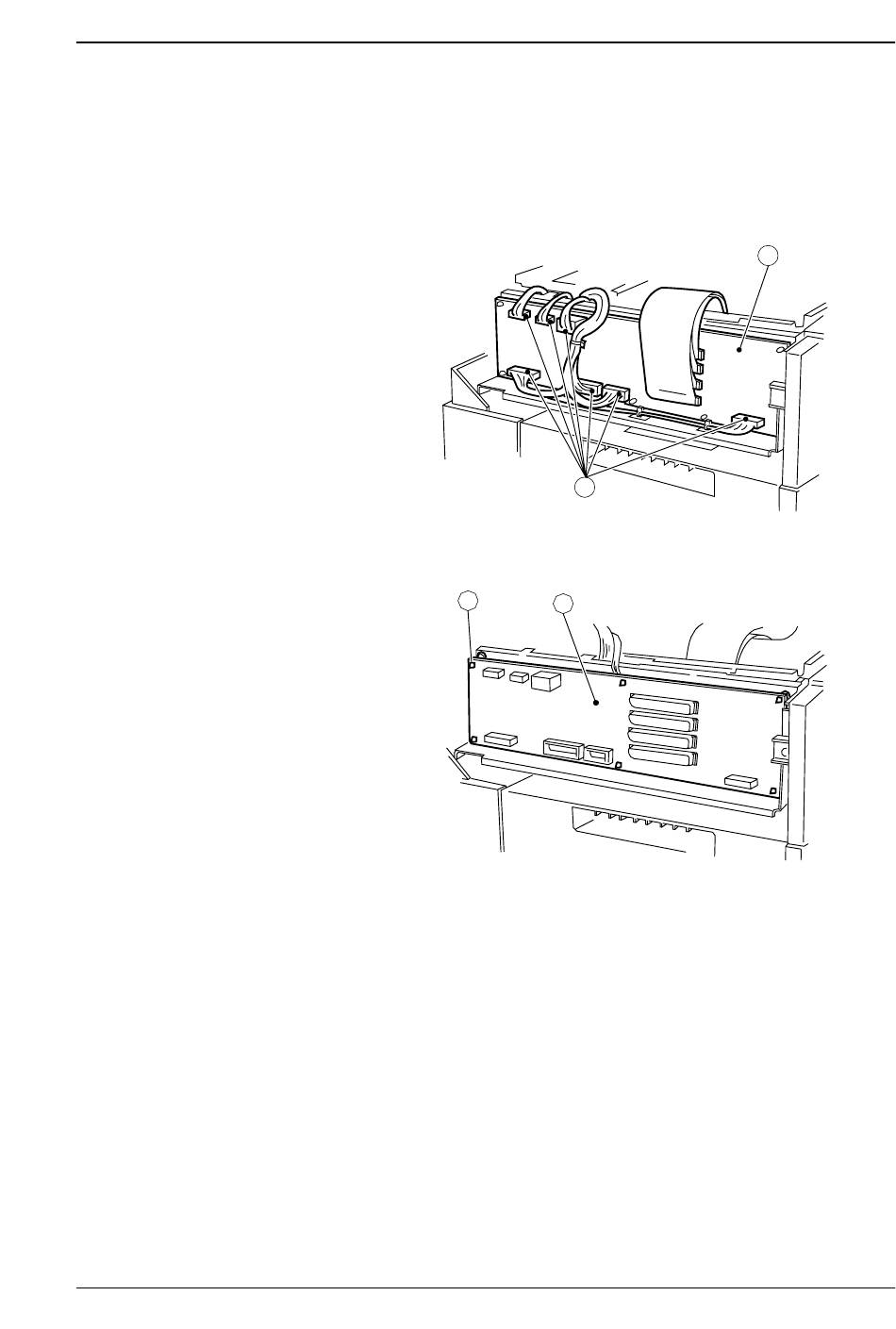

Detaching the Engine 2 PCB
1. Disconnect the 11 connectors J405, J406, J407, J408, J409,
J411, and J412 (2) of the engine 2 PCB (1).
2. Remove the claw from the six locking card spacers (2) and
detach the engine 2 PCB (1).
