3.2 Image Formation System, cont'd.
3.2:C Fan Unit, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1

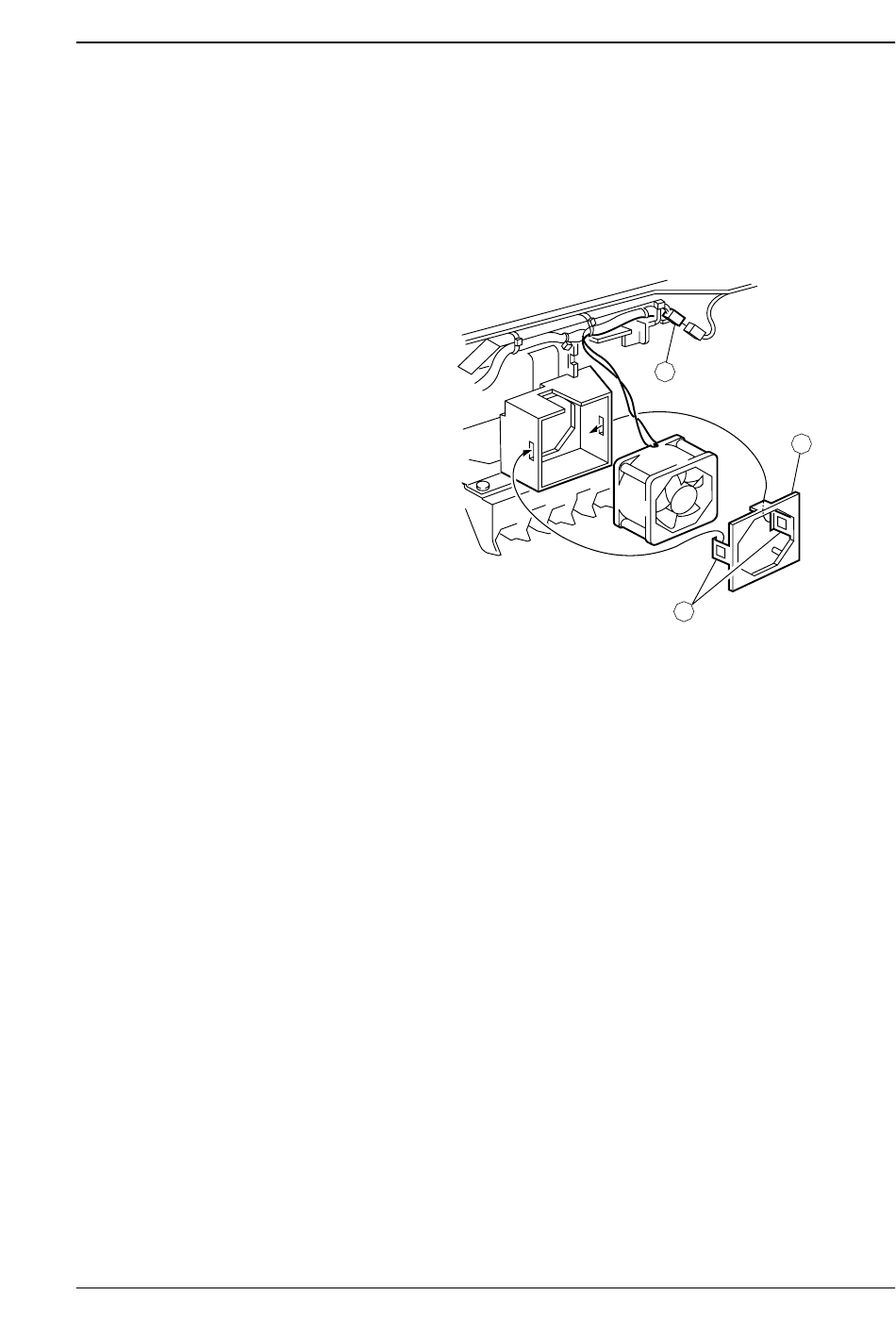

Detaching the Right Fan Unit
1. Detach the external cover (see Chapter 3.1 Externals).
2. Disconnect the connector J22 (1), disengage the claws (3) of the
fan right holder 2 (2), and then detach the fan right holder 2.
3. Detach the fan motor.
Chapter 3 Mechanical System
1
3
Figure 3-46
2
