3.3 Ink Supply System, cont'd.
3.3:B Pump Unit, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Detaching the Pump Unit, cont'd.

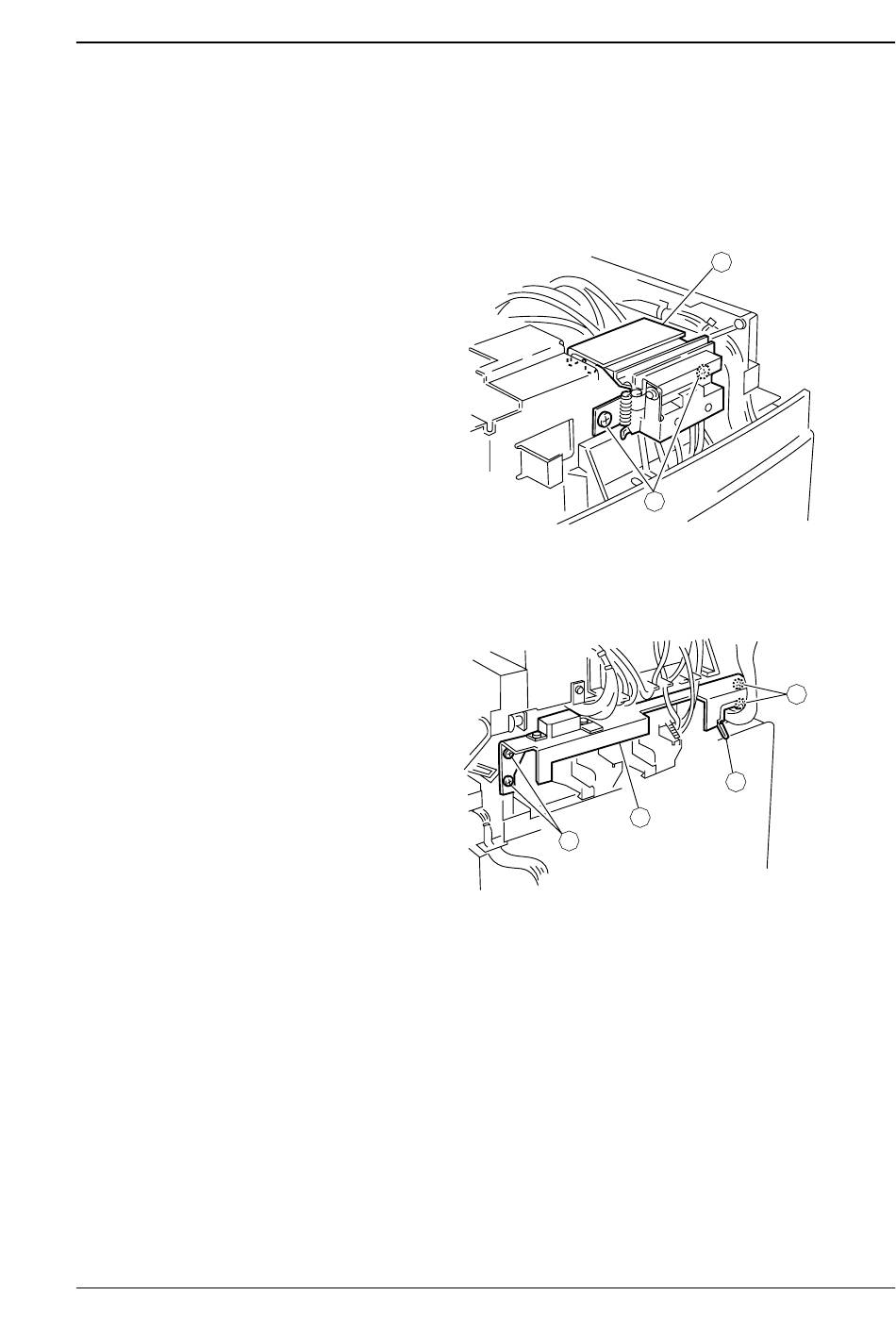

7. Remove the two mounting screws (2) from the tube station (1),
and detach the tube station.
8. Remove four recovery tubes (1) from the recovery pump.
Chapter 3 Mechanical System
1
2
Figure 3-60
3
1
2
Figure 3-61
2
