3.2 Image Formation System, cont'd.
3.2:B Recovery Unit, cont'd.
Caution:
When the recovery tubing is removed,
suck the waste ink in the tubing with the
paper towel and, if leaving the recovery
tubing removed, put paper towel around
the edge of the tubing.
Intermec ColorCoder V4 – Service Manual Ed. 1
Removing the Recovery Unit, cont'd.

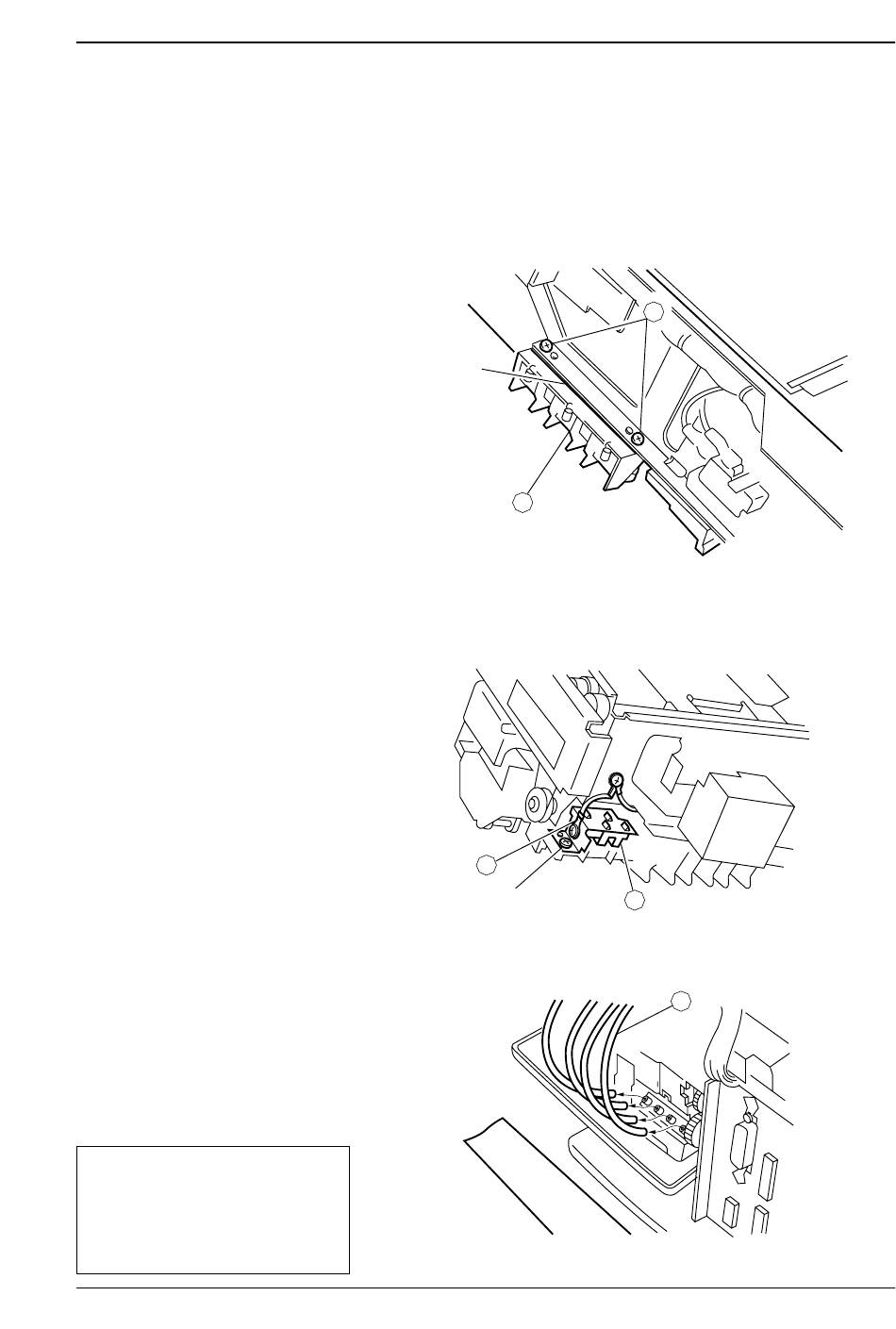

6. After making a mark for the mounting position of the pinch roller
unit, remove two screws (2) from the pinch roller unit (1), and
detach the unit.
Marking
1
7. Disconnect the connectors of the cap position sensors 1 and 2 (1).
Remove the mounting screw (2) and toothed washer from the
grounding wire, and remove the grounding wire.
2
Do not remove
the painted screw.
8. Detach the recovery tubing (1) from the recovery pump.
Chapter 3 Mechanical System
2
Figure 3-27
1
Figure 3-28
1
Figure 3-29
