3.2 Image Formation System, cont'd.
3.2:C Fan Unit
Intermec ColorCoder V4 – Service Manual Ed. 1
Detaching the Fan Unit
1. Detach the PHS cover and rear cover (see Chapter 3.1 Exter-
nals).

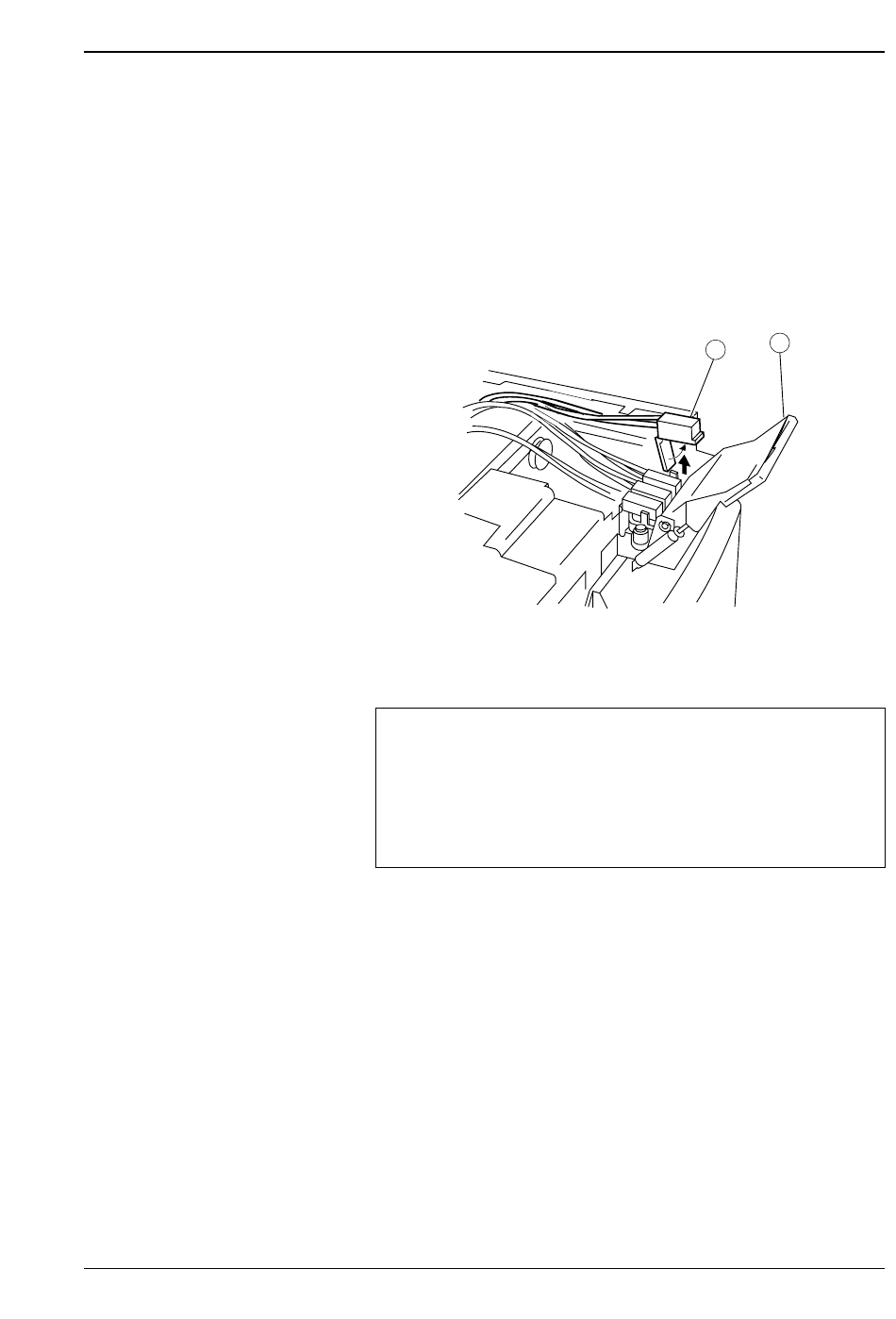

2. Release the tube release lever (1).
3. Disconnect the all four tube connectors (2), install the connector
packing (1-901808-00), and then close the connector cap.
4. Install the transportation connector (for Bypass 1-901809-00) to
the tube station, and close the tube release lever (2).
Caution:
1. Before attaching the transportation connectors (1-901809-00) to the tube
stations, clean the transportation connectors with lint free sponge
(1-901800-00) to prevent foreign material, dust, or contaminated ink from
entering the connection areas of the tube stations and the inside of the tubes.
2. Be sure to attach the transportation connectors (1-901809-00) to the tube
stations; otherwise the ink may flow out of the tube when the tube station is
detached or during the initial ink filling.
Chapter 3 Mechanical System
2
Figure 3-41
1
100
