6.3 Test Print, cont'd.
6.3:B Test Patterns, cont'd.
-6
Intermec ColorCoder V4 – Service Manual Ed. 1
NOZ. ADJ. PATTERN (Registration Adjustment), cont'd.
(2) Horizontal Registration Adjustment
• K Adjustment Method
Judge it on the basis of the position of the outer frame which is
the maximum scribed image area and adjust the existing set
value.
• C, M, Y Adjustment Method
Read the number where the lines coincide, and add that number
to the existing set value.
Notes:
1. When changed the set value of the Black nozzle position in the horizontal
registration adjustment above, re-print out "NOZ.ADJ." and then adjust
Cyan, Magenta and Yellow respectively on the basis of the re-print result
accordingly.
2. The third pattern (latest one) of three "NOZ.ADJ." should be taken into
account to judge the printing position and decide set value.
0 +3 +6
-3
Chapter 6 Troubleshooting
(2) Pattern for horizontal
registration adjustment
(2) Pattern for checking
the result of the adjustment

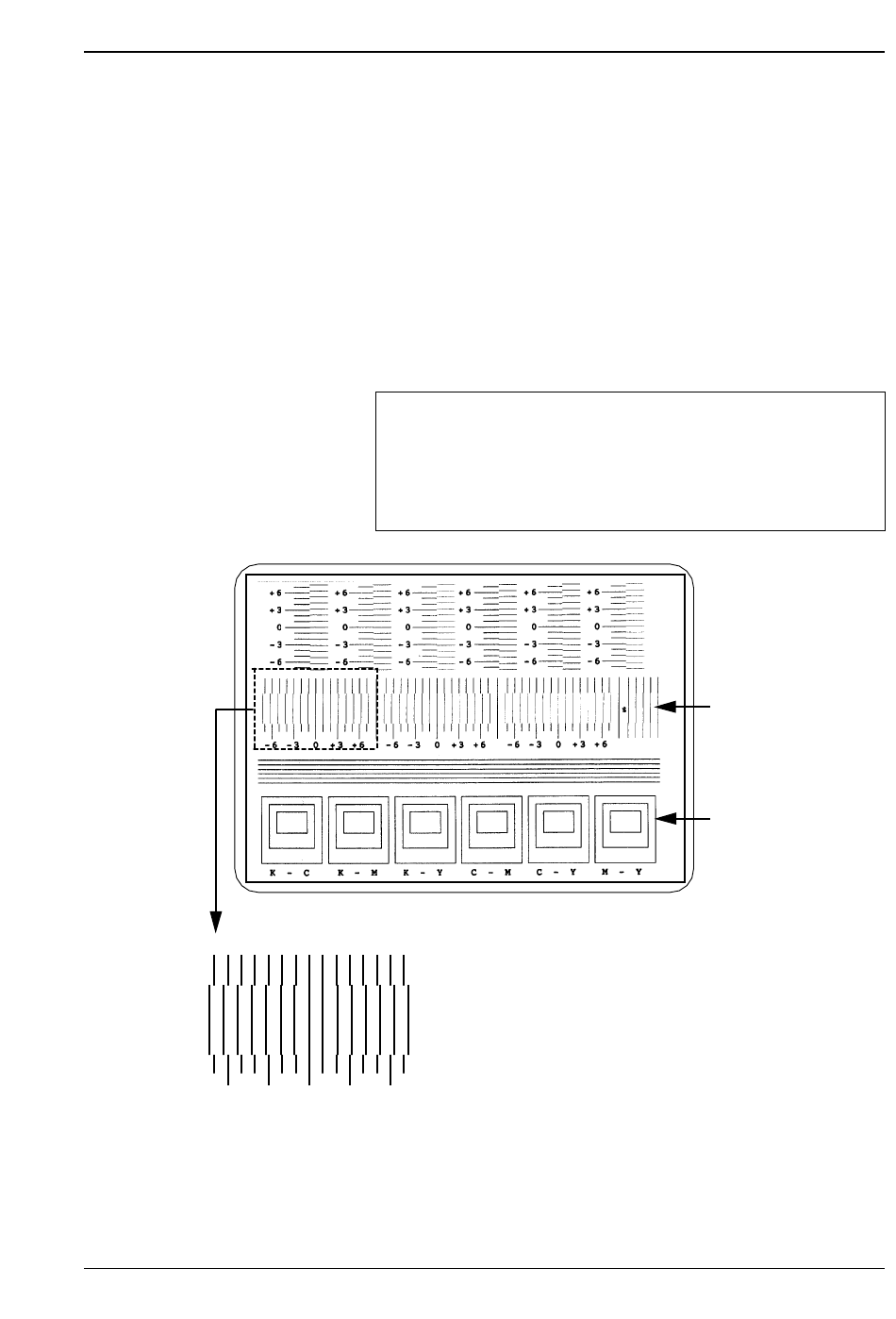

Figure 6-4
