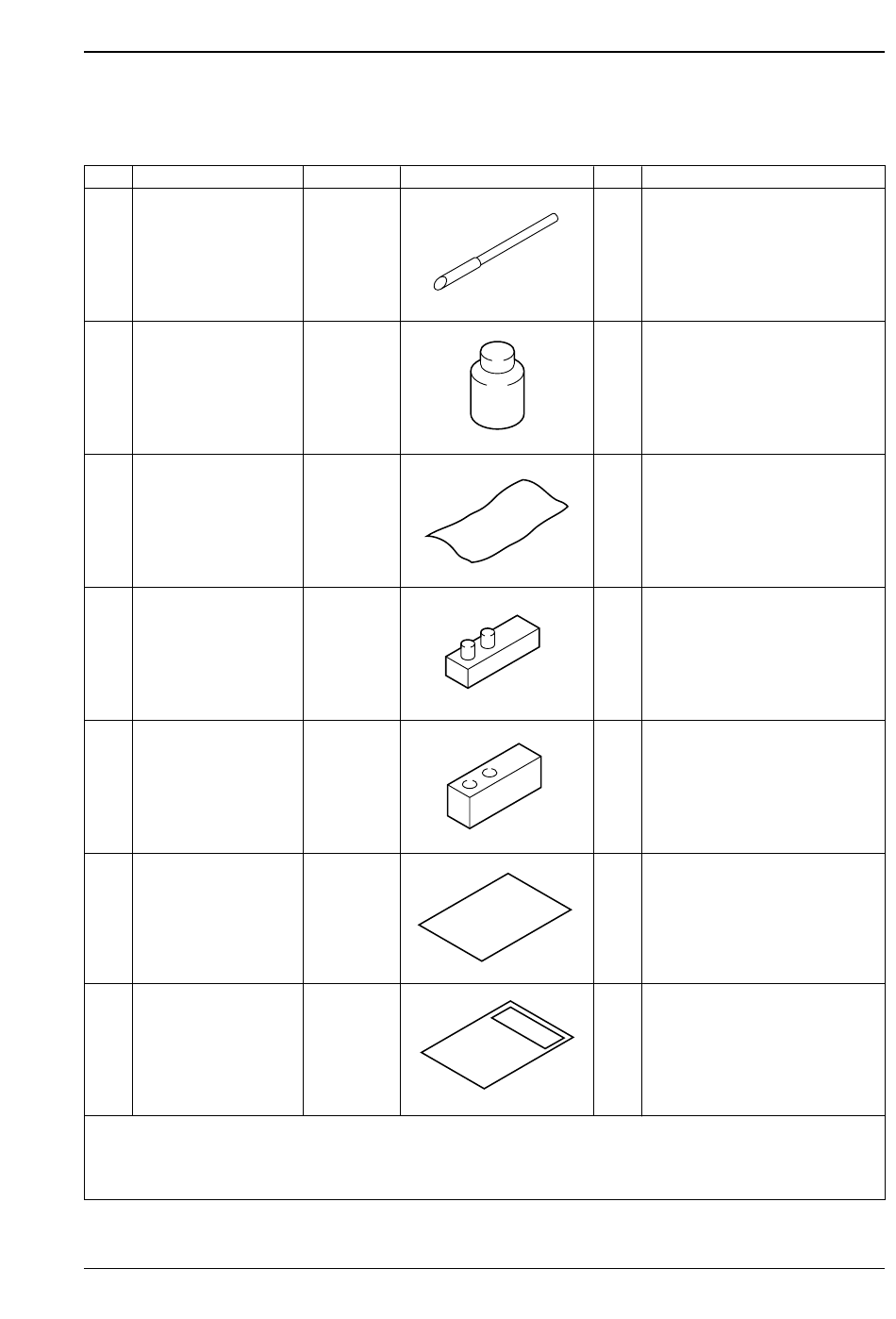

A.3 List of Special Purpose Tools
No. Name of Tool
1 Lint free sponge
(stick type)
2 Clear ink
3 Lint free towel
4 Tube connector cap
5 Shipping connector
(for bypass)
6 TOF sensor 2 adjust chart
7 TOF sensor 1 adjust chart
Meanings of A to C in Rank column:
A: A tool that should be carried by each service engineer.
B: A tool that should suffice if one was assigned to a group of about 5 service engineers.
C: A tool that should suffice if one is kept in a work shop.
Intermec ColorCoder V4 – Service Manual Ed. 1
Tool No.
1-901800-00
1-901805-00
1-901807-00
1-901808-00
1-901809-00
1-901803-00
1-901804-00
Form Rank
B
B
A
A
A
C
C
Appendix
Purpose/Remarks
Used, impregnated with clear ink (1-
901805-00), to clean BJ heads.
Used, impregnated in dust proof
sponge (1-901800-00), to clean BJ
heads.
Used for cleaning the inside of the
machine and for wiping spilled ink.
1 Used for medium and long range
transportation.
2 Used when removing heads so
that ink inside the tubes is not
spilled.
3 Used when INK FILL is operated.
1 Used for medium and long range
transportation.
2 Used when removing tube sta-
tions so that ink inside the tubes is
not spilled.
3 Used when INK FILL is operated.
Standard chart for setting the sensor
level when adjusting TOF sensors
(for reflection sensors).
Standard chart for setting the sensor
level when adjusting TOF sensors
(for transmission sensors).
Used for positioning the feed unit
motor when installing it.
Used for putting the wasted ink.
