3.4 Pick Up/Feeder System, cont'd.
3.4:A Roll Unit, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Removing the paper guide (front), cont'd.

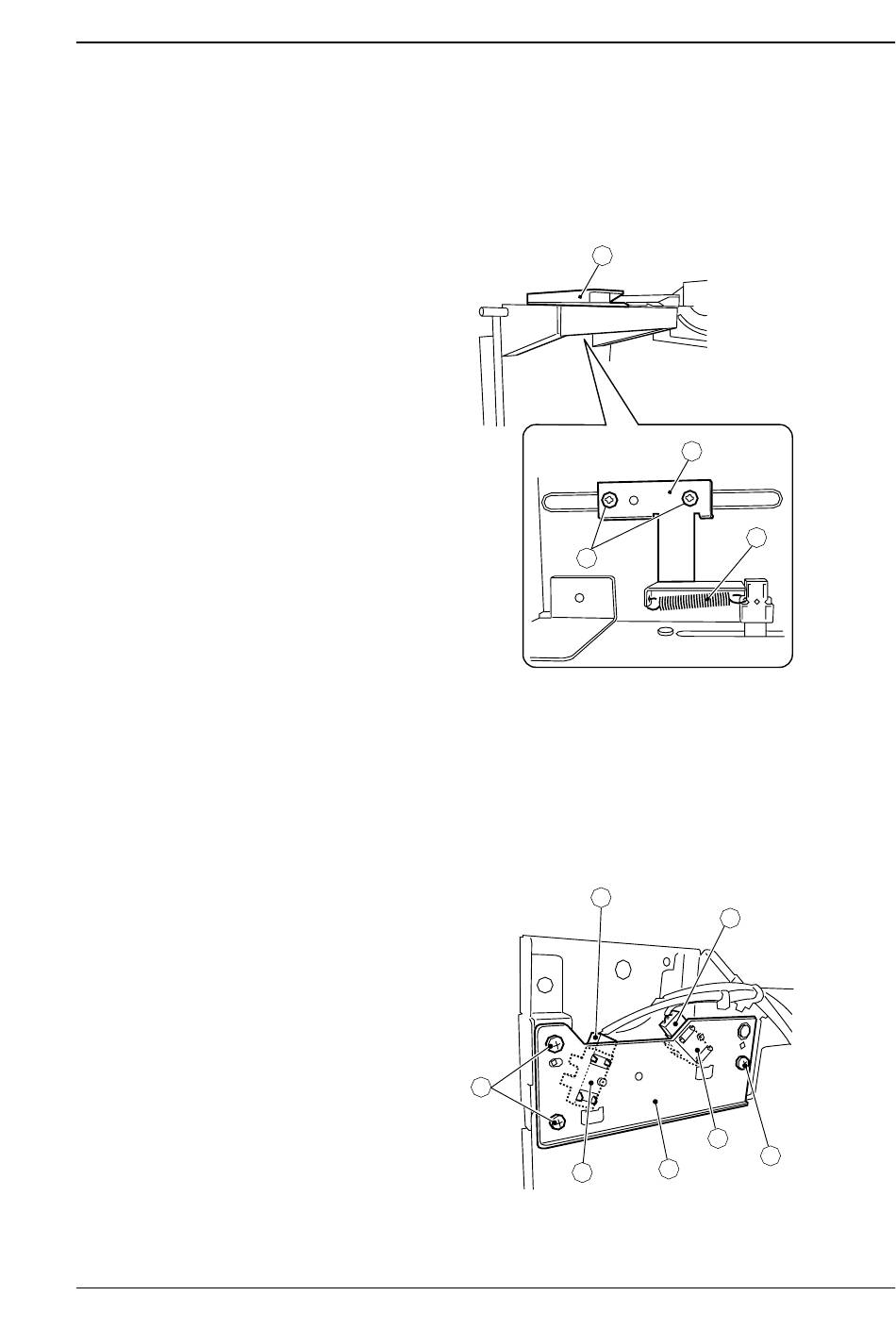

3. Remove the two mounting screws (2) from the spring mount (1),
remove the spring (3) and detach the paper guide (front) (4).
Removing the roll sensor and roll paper end sensor
1. Disconnect the connector J61 (2) from the roll sensor (2) and the
connector J62 (4) from the roll paper end sensor (3).
2. Remove the three mounting screws (6) from the roll sensor
mount (5) and detach the roll sensor and roll paper end sensor
from the mount, removing the claws of the sensors.
