2.6 Control Panel, cont'd.
2.6:B Operation, cont'd.
Power switch
ON StandbyPRINT
INIT STBY
On-line lamp
On-line key
Feed key
Pause key
Stop key
Right cursor key
Left cursor key
Enter key
Menu key
Note
1. If the on-line key is pressed during this period, the on-line display flashes, and the printer will be the
off-line state immediately after the printing operation completes.
2. If the on-line key is pressed during this period, the printer will immediately reset to the on-line during
the printer is set up. During the operation in the menu mode, the on-line display flashes, and the printer
will be the on-line state immediately after the operation completes.
3. If the feed key is pressed during this period, the printer feeds one sheet of the paper.
If the feed key is pressed instantaneously during this term, the printer feeds one sheet of the paper for
about 10mm. (The key can be used even while an operation call error has occurred.)
If the feed key and right cursor key are pressed at the same time during this period, the printer feeds
the paper forward during they are pressed.
If the feed key and left cursor key are pressed at the same time during this period, the printer feeds the
paper backward during they are pressed.
As obviously from the above, the periods during which the keys on the control panel of the printer are
effective can be divided into the following four groups.
1. On-line and during standby
The on-line key is effective.
2. On-line and during printing operation
The on-line, pause, and stop keys are effective.
3. Off-line and in normal mode
The on-line and feed keys are effective.
4. Off-line and in setup mode
The on-line, right cursor, left cursor, menu, and enter keys are effective.
Intermec ColorCoder V4 – Service Manual Ed. 1

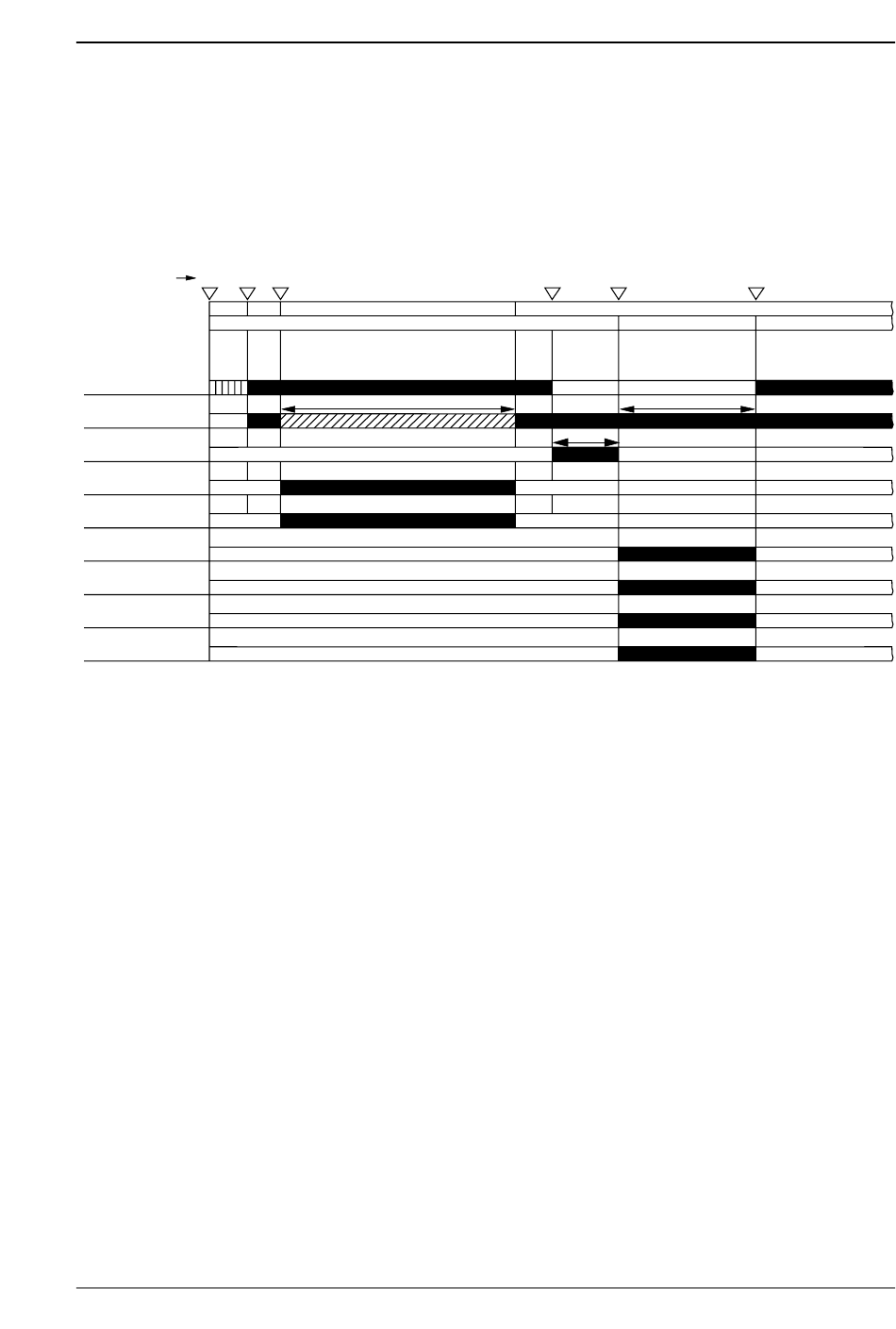

Write-in of operation keys
The following show the period during which the key is effective,
when a key on the control panel is pressed.
Press the
on-line key
PRINT
Normal mode
ON LINE
Note 1
Figure 2-59
Chapter 2 Operation and Timing
Press the Press the
menu key. on-line key.
STBY
Set-up mode
OFF LINE
Note 2
Note 3
ON LINE
