4.2 Unpacking and Installation, cont'd.
4.2:C Installation (fan fold type), cont'd.
No. Procedure

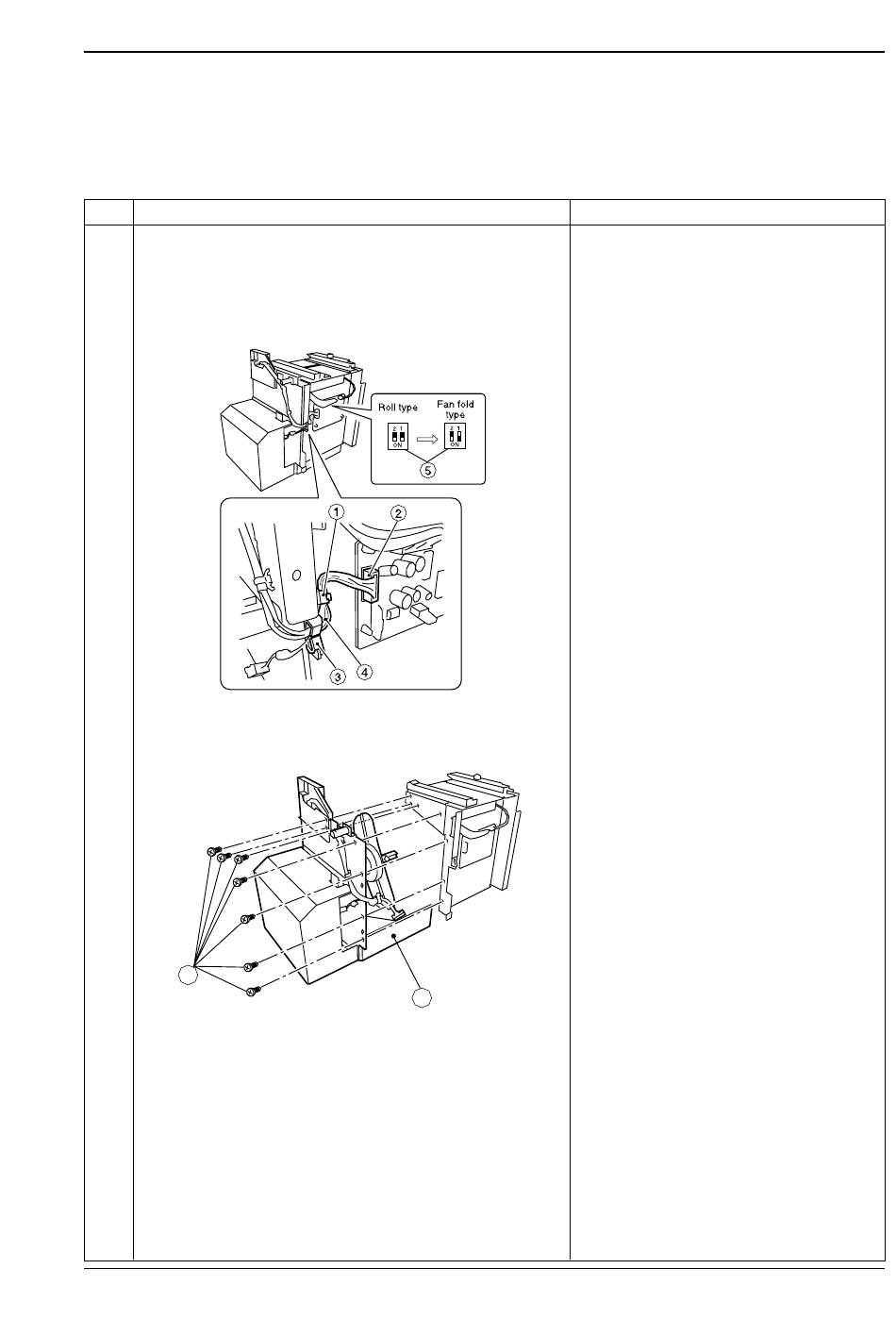

2 5. Remove the tie-wrap (1) and disconnect the roll holder PCB
connector J602 (2).
6. Remove the harness (4) from the edge saddle (3).
7. Turn ON the No.1 dip switch (SW1) (5).
8. Remove the seven mounting screws (2) from the roll frame (1)
and detach the roll unit drive system.
2
Intermec ColorCoder V4 – Service Manual Ed. 1
Inspection/Remarks
1
Chapter 4 Installation
161
