Intermec ColorCoder V4 Service Manual page 154

4.2 Unpacking and Installation, cont'd.
4.2:B Installation (roll type), cont'd.
No. Procedure

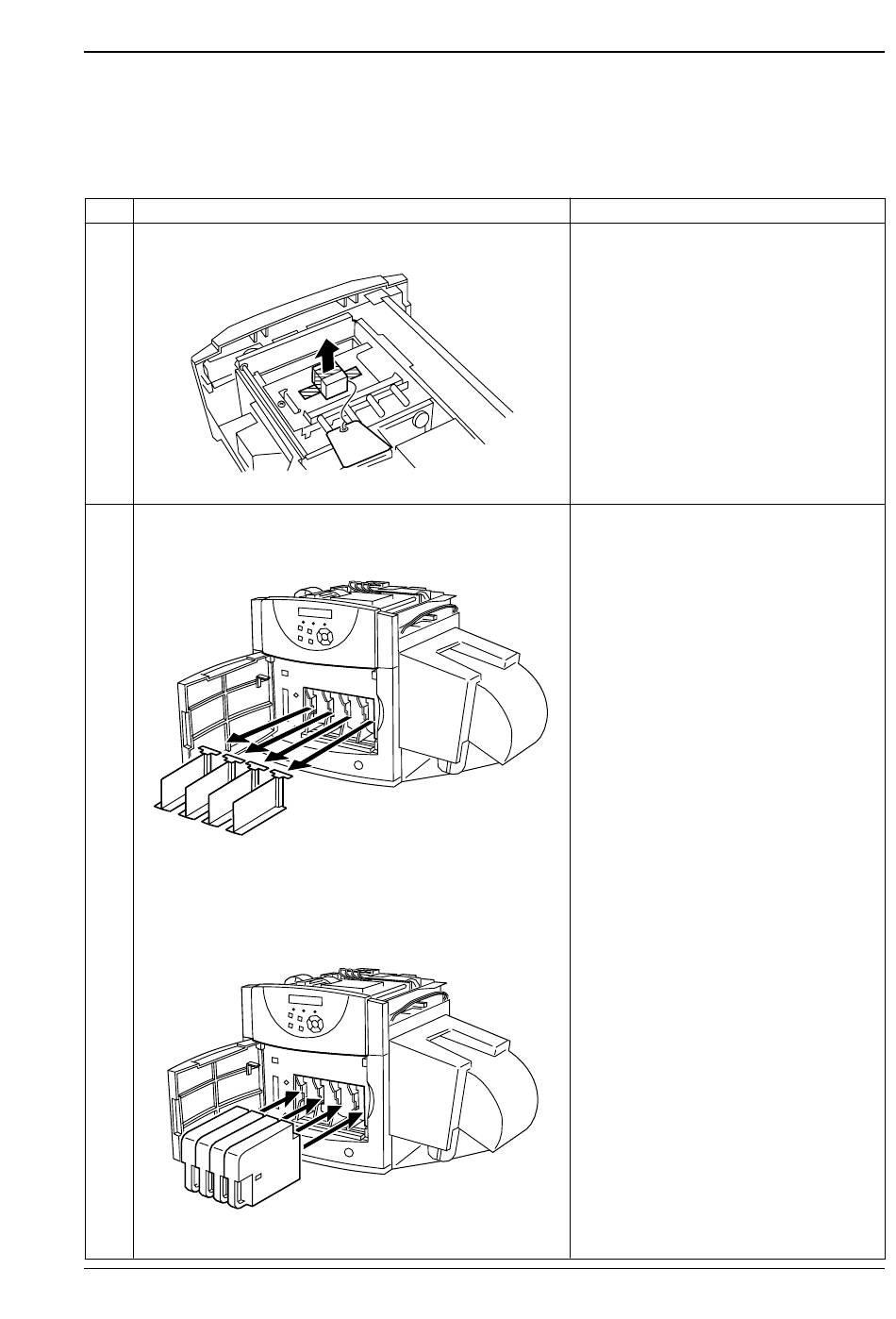

5 Take off the upper head plate packing that is affixed with tape to the
head upper plate.
6 Setting ink cartridges:
1. Open the front cover and remove the four transport cartridges
from the ink room.
2. After checking the ink colors and set positions of the cartridges,
place each ink cartridge in its prescribed place.
3. After all the cartridges have been set in place, close the front
cover.
Intermec ColorCoder V4 – Service Manual Ed. 1
Chapter 4
Inspection/Remarks
Keep the upper head plate packing for use when
the machine is being transported, etc.
Keep the transport cartridges for use when the
machine is being transported, etc.
• Ink setting positions, from the right: Y (yel-
low), M (magenta), C (cyan), K (black).
• If the attached positions of the cartridges are
wrong, the cartridges cannot be properly set in
place.
• Push in the cartridges right up to the end.
Installation
153
