3.3 Ink Supply System, cont'd.
3.3:B Pump Unit
Intermec ColorCoder V4 – Service Manual Ed. 1
Detaching the Pump Unit
1. Remove the front cover, PHS cover, and rear cover (see Chapter
3.1 Externals).
2. Open the tube release lever.
3. Disconnect the four tube connectors (1), and close the connector
cap (2).
4. Install the shipping connector (1-901809-00) (1) to the tube
station, and close the tube release lever (2).
Caution:
Never open the tube release lever , if it's not necessary. If opened, carry out
the procedure for initial ink fill after re-assembling in compliance with
Chapter 3.3:B Pump Unit/Precautions in assembling (last page).
Chapter 3 Mechanical System
2

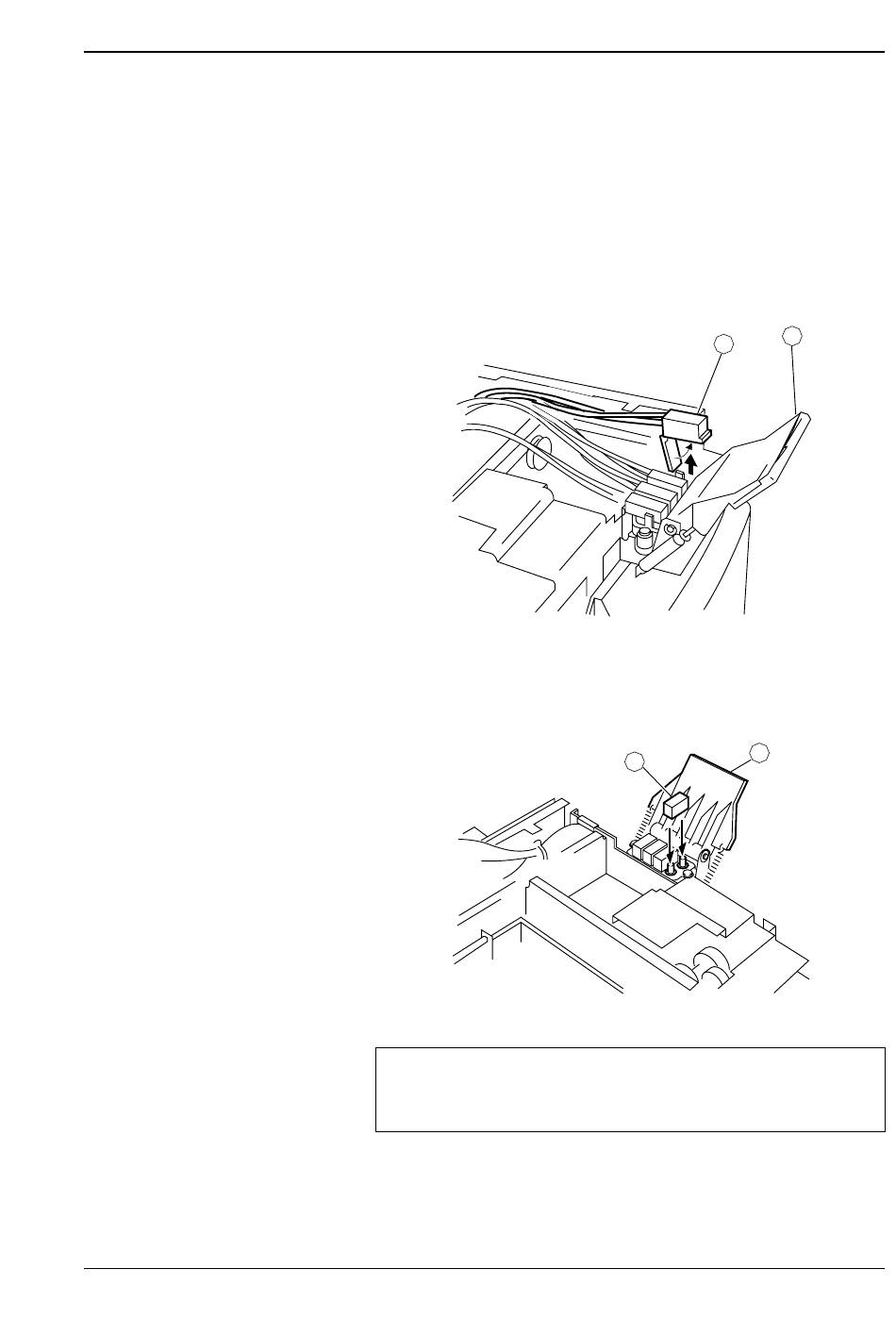

Figure 3-56
2
1
Figure 3-57
1
109
