2.1 Basic Operation, cont'd.
2.1:J Motor Control, cont'd.
+12V
Q348
Motor
Gate
driver
array
Control
Circuit
Intermec ColorCoder V4 – Service Manual Ed. 1
+24V
Q313 Q317
Driver
IC
Q318
Driver
IC
+24V
Q338
Driver
IC
Chapter 2
Engine 1 PCB
FEEDMA
FEEDMB
FEEDMC
FEEDMD
FEEDME
PUMPMA
PUMPMB

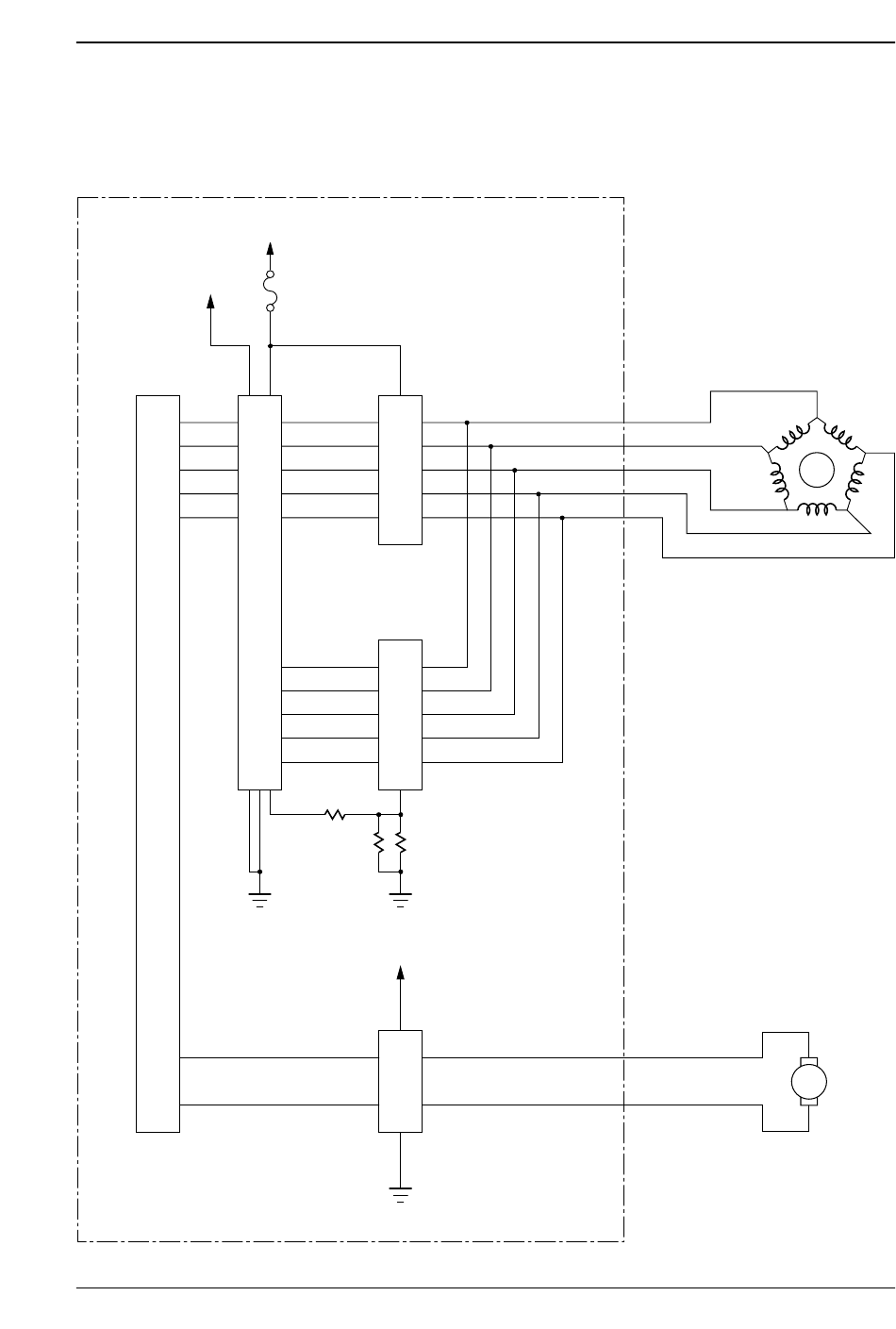

Figure 2-11
Operation and Timing
J301-1
-2
-3
-4
-5
Feeder motor
J302-13
M2
-14
Pump motor
M1
