2.4 Pick Up/Feeder System, cont'd.
2.4:D Feeding Operation
Delivery rowel
Intermec ColorCoder V4 – Service Manual Ed. 1
Outline
The paper supplied to the feeder unit is fed by means of the pinch
roller, the feed belt, and the delivery roller.
These are driven by the feeder motor. Five rowels provided along
the feeder path prevent the paper from being off-contact. The feeder
motor is of a 5 phase type. During the printing operation, every 70.5
mm (an equivalent of one line of 360 dpi) paper fed, an equivalent
of one line of the ink of the BJ head is ejected.
Rowels
Feed belt
Roll drive shaft
Chapter 2
Feeder motor

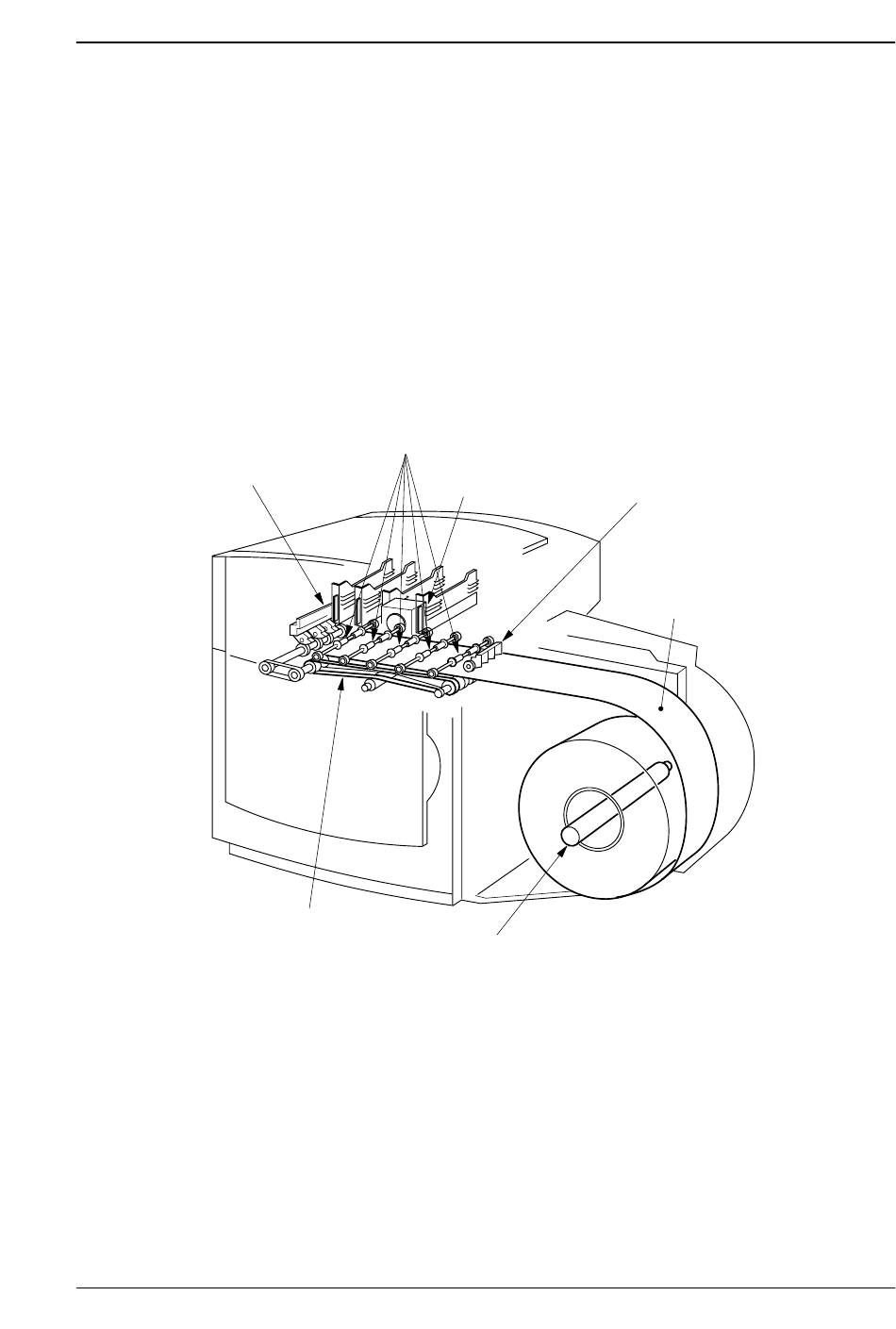

Figure 2-52
Operation and Timing
Pinch roller
Roll paper
