4.2 Unpacking and Installation, cont'd.
4.2:C Installation (fan fold type), cont'd.
No.
Procedure
4

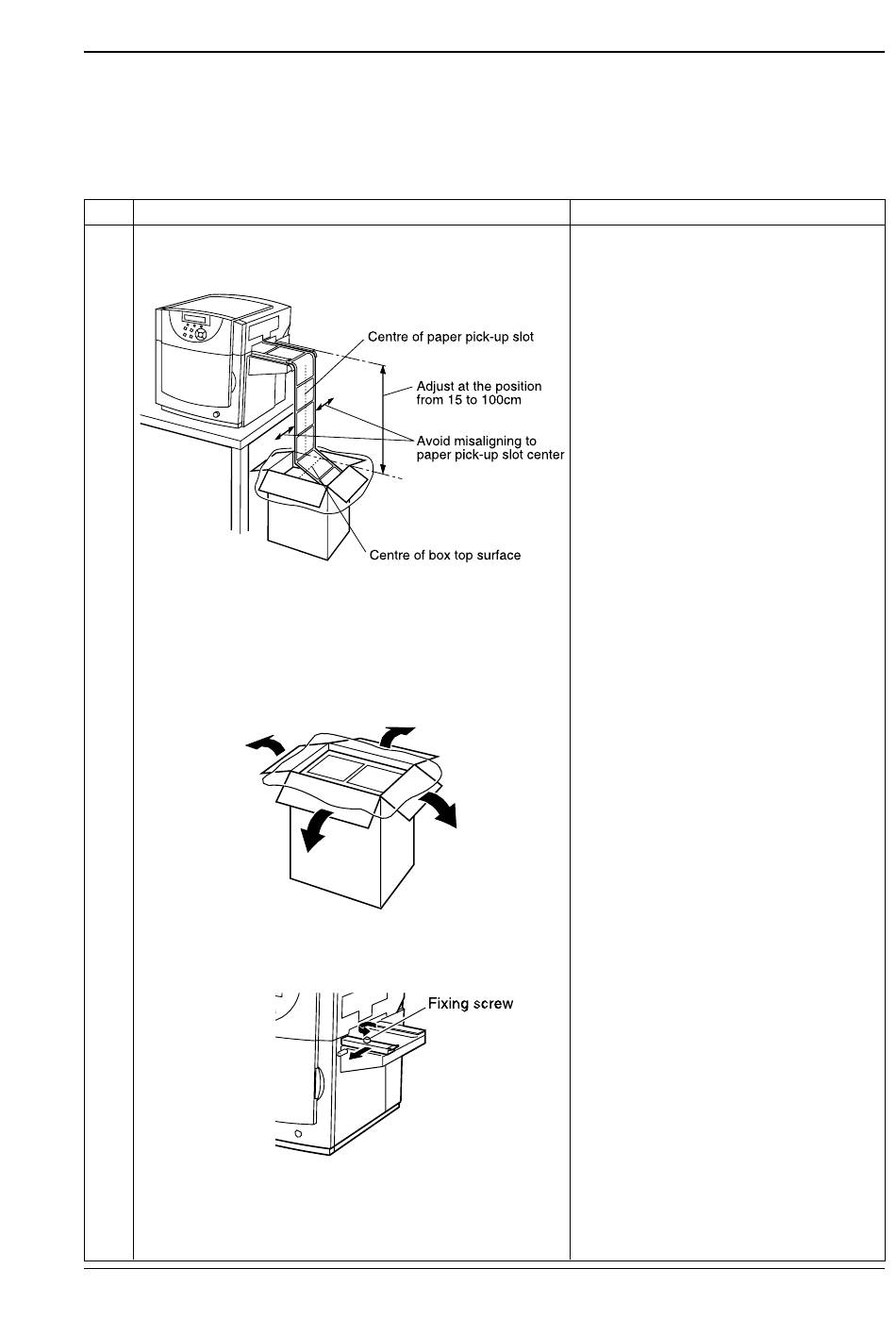

Setting the fan fold paper:
When using the fan fold paper, adjust the printer main unit and fan
fold paper position as shown below.
1. Turn the power SW ON and start operation in the normal mode.
After the automatic cleaning process is started and completed,
"READY" message is indicated.
2. While the "READY" message is indicated, push the "ON LINE"
key so that the "OFF LINE" message is indicated.
3. Open the paper box and fold down the vinyl bag and box lid
outward.
4. Untighten the screw fixing the paper guide (front) and move the
paper guide frontward until coming to a stop.
