Dc Power Supply Unit - Intermec ColorCoder V4 Service Manual

3.5 PCBs, cont'd.
3.5:E DC Power Supply Unit
Intermec ColorCoder V4 – Service Manual Ed. 1
Detaching the DC Power Supply Unit
1. Detach the external cover.
2. Remove the two mounting screws (2) from the lower rear side
of the connector cover (1), and detach the connector cover.
3. Disconnect the four connectors J001 and J002 (3).
4. Remove the two mounting screws (2) from the lower front side
of the DC power supply unit cover (1), and detach the DC power
supply unit cover.
Chapter 3 Mechanical System
1
3
2

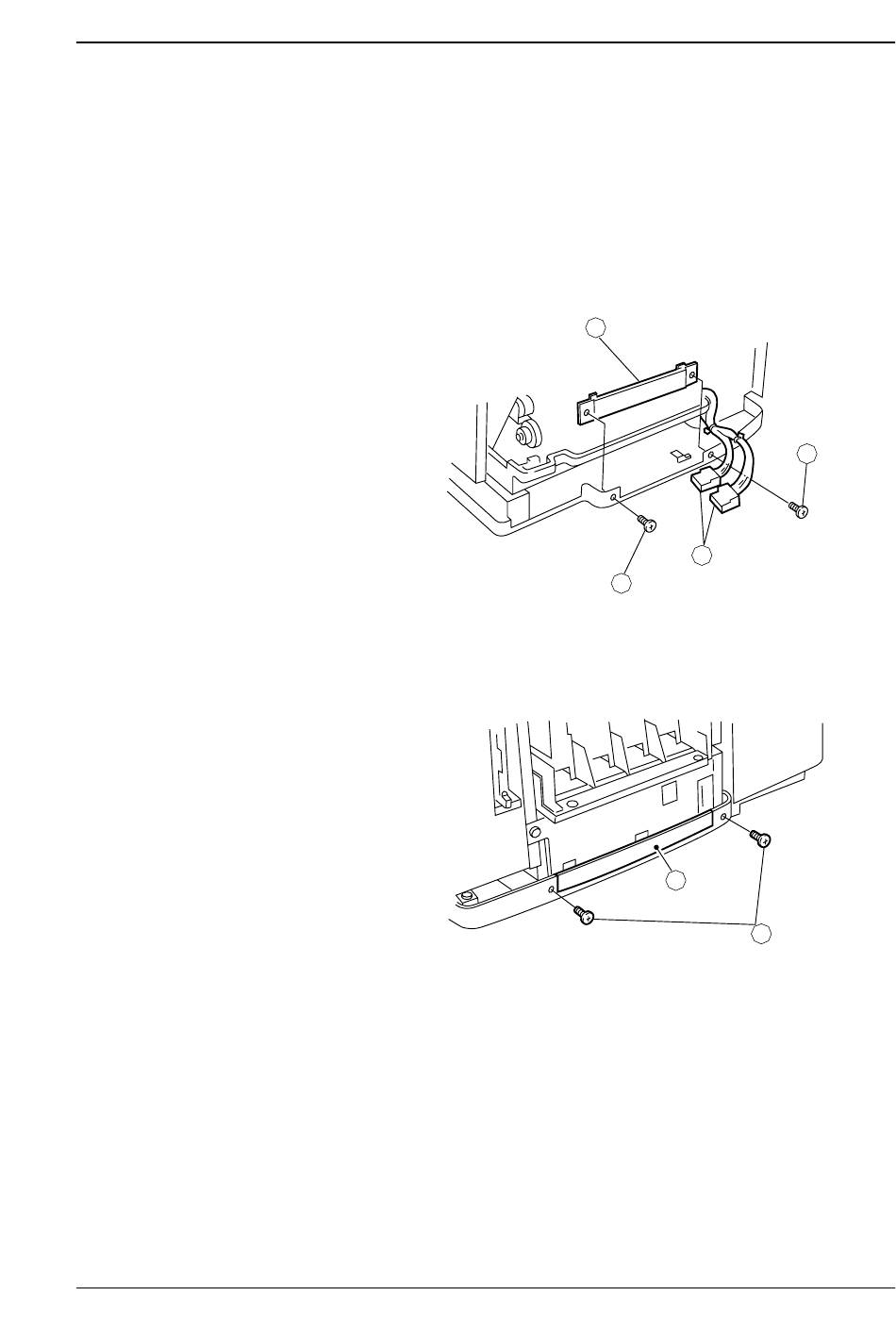

Figure 3-122
1
2
Figure 3-123
2
