4.2 Unpacking and Installation, cont'd.
4.2:C Installation (fan fold type), cont'd.
No. Procedure

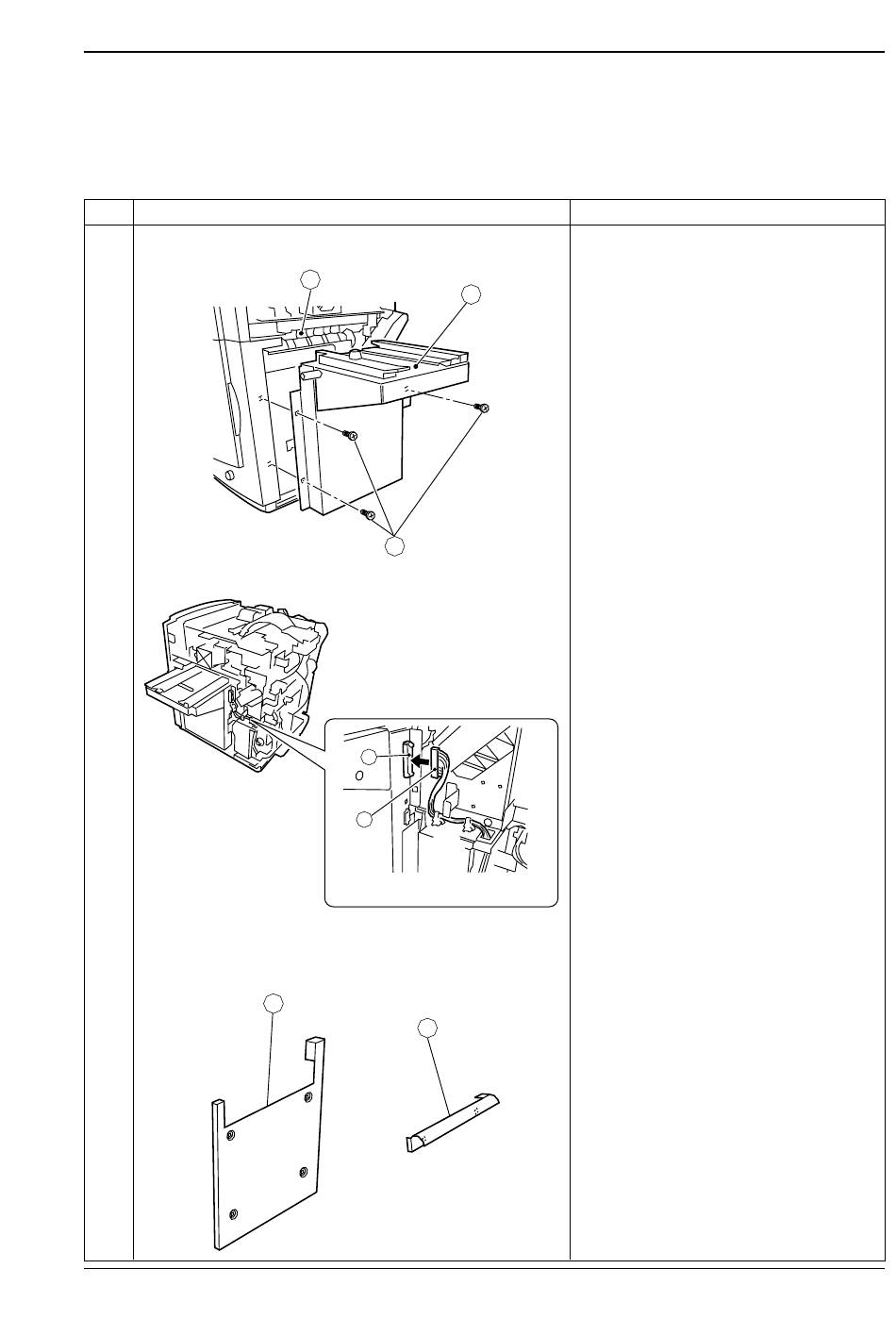

2 9. Install the fan fold guide frame (1) to the printer main unit (2)
with three binding screws (M4x6) (3).
10. Insert the roll harness connector (1) into J65 (2).
11. Install the rear cover.
12. Unpack the fan fold kit and take out the fan fold roll right cover
(1) and fan fold guide (2).
Intermec ColorCoder V4 – Service Manual Ed. 1
2
3
2
1
1
2
Inspection/Remarks
1
Chapter 4 Installation
162
