3.1 Externals, cont'd.
3.1:A External Covers, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Detaching the External Covers
1. Remove the two mounting screws (2) from the PHS cover (1),
and detach the PHS cover.
See Chapter 3.1:B Control Panel as to how to detach the control
panel.
2. Remove the two mounting screws (3) from the left cover (1) and
manual cutter (2).
Chapter 3 Mechanical System
1

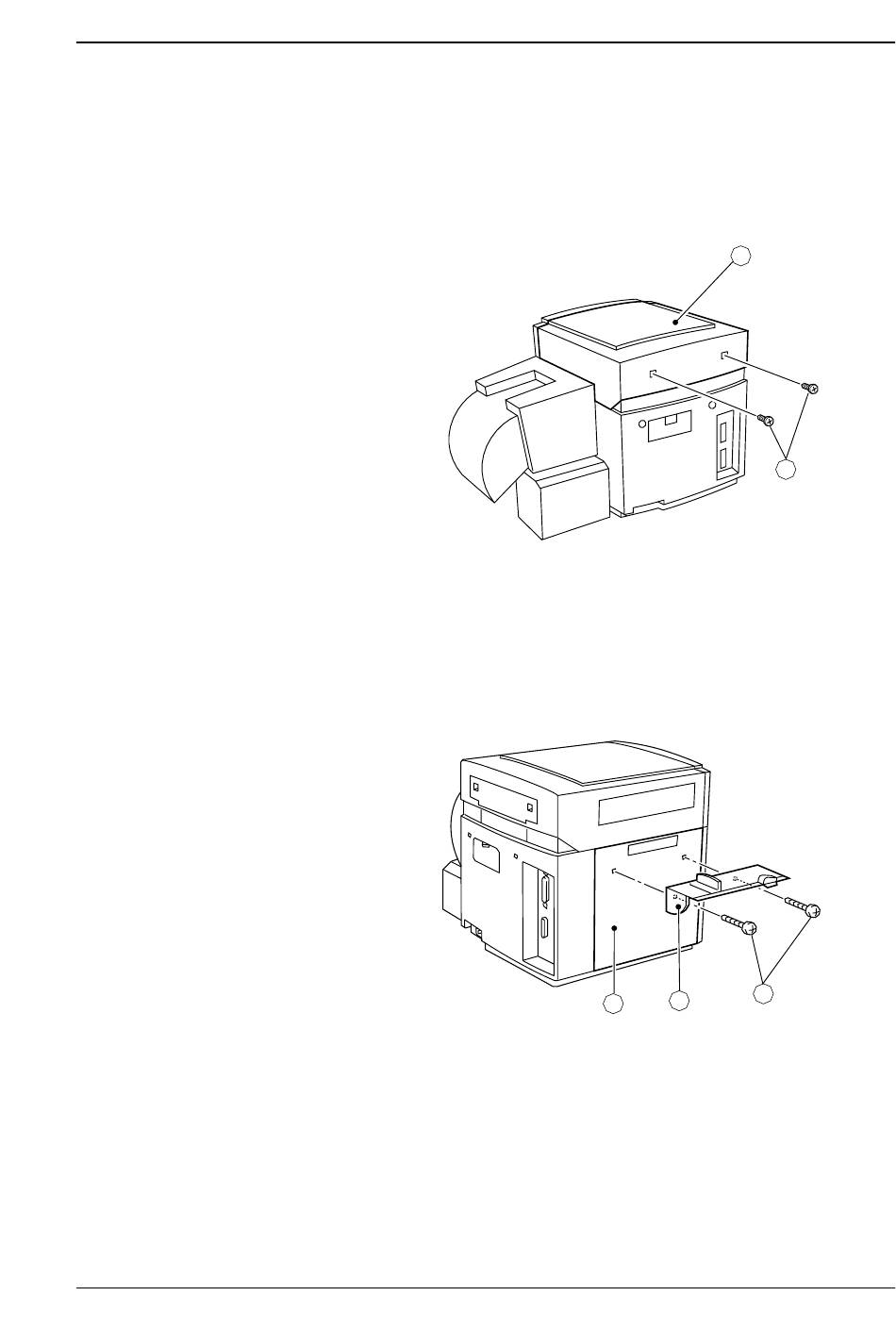

Figure 3-3
3
2
1
Figure 3-4
2
