3.4 Pick Up/Feeder System, cont'd.
3.4:B Feeder Unit
Intermec ColorCoder V4 – Service Manual Ed. 1

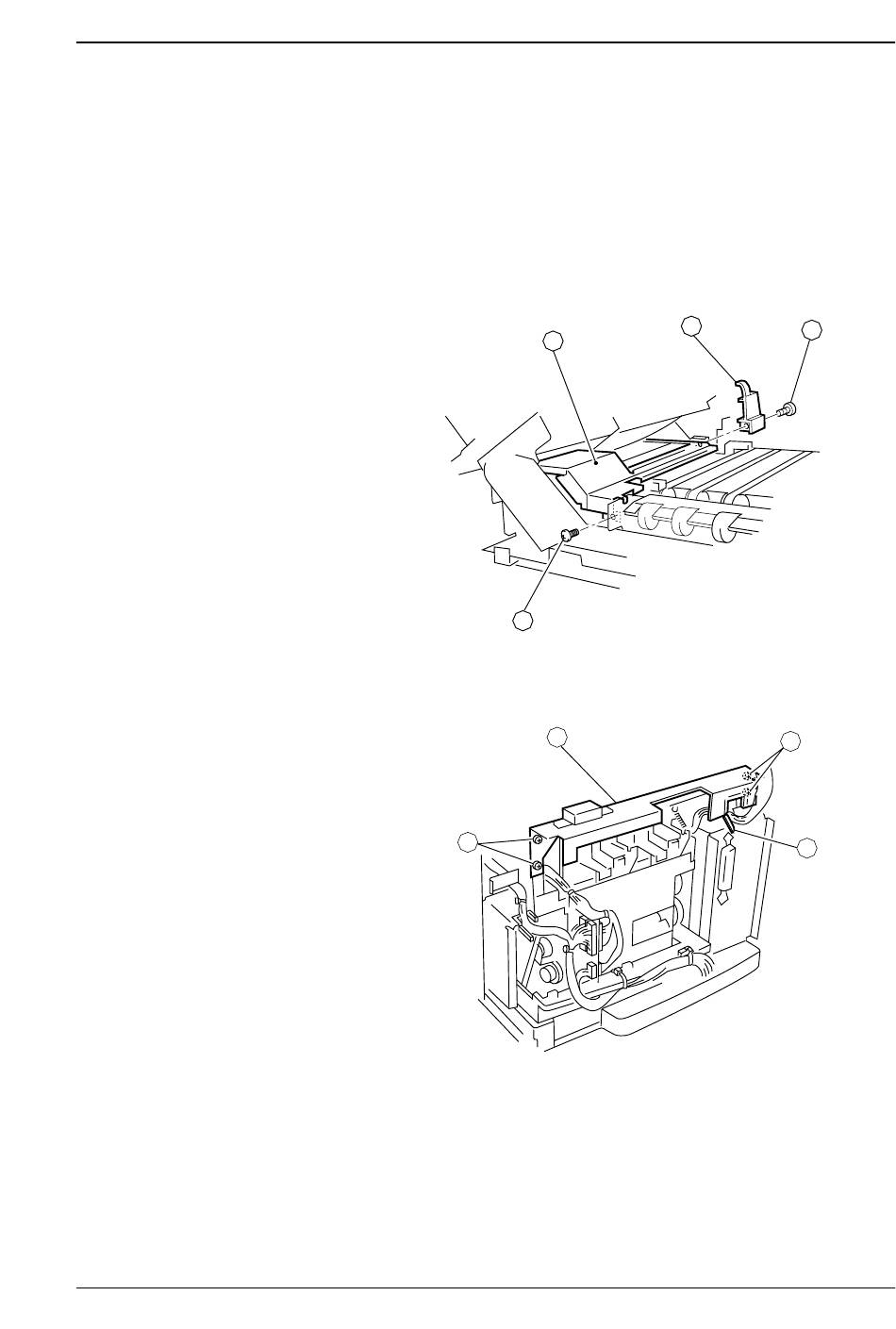

Detaching the Feeder Unit
1. Detach the external cover.
2. Detach the roll holder unit.
3. Remove the two screws (1) and detach the microswitch lever (2)
and the feeder motor cover (3).
1
4. Open the wire clip (2) of the rear crossmember (1), remove the
four mounting screws (3), and detach the rear crossmember.
3
Chapter 3
2
3
Figure 3-92
1
Figure 3-93
Mechanical System
1
3
2
131
