6.4 Head Shading, cont'd.
6.4:B Procedure to Make HS Data,
cont'd.
Start/Stop button
Figure 6-17
Intermec ColorCoder V4 – Service Manual Ed. 1
Creating the HS data
Caution:
There are two kinds of procedures in creating the HS data.
The one is to create new data for each cyan, magenta, and yellow and the other
is to correct part (a given BJ head) of the HS data already exist in the host
computer.
The following procedure explains each procedure.
Creating new HS data for C, M, and Y.

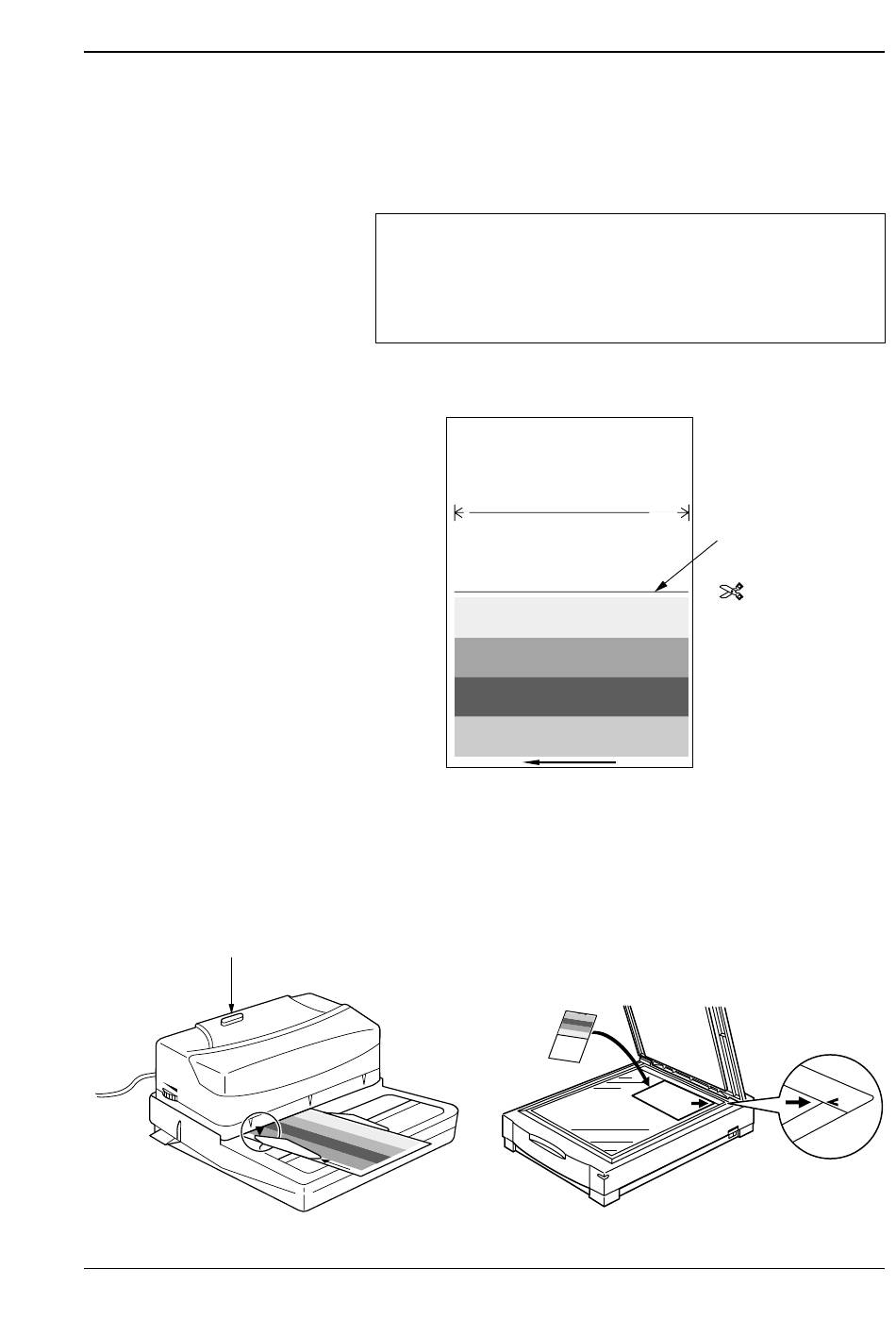

1. Cut the test chart along the cutting line.
1
2. Set the test chart into the inlet of the scanner.
Set the left guide plate of the scanner to the arrow mark and set
the right guide plate along width of the test chart.
(When using a flatbed scanner, place the test chart in alignment
with the home position as shown figure 6-18.)
Chapter 6 Troubleshooting
1344
Cutting line
Figure 6-16
Figure 6-18
