6.4 Head Shading, cont'd.
6.4:B Procedure to Make HS Data,
cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Creating new HS data for C, M, and Y, cont'd.
6. Click in the twain display.
The data will be transfered to the HS utility software.
7. Temporary HS data file is created by clicking "OK". When
installing BJ Printer driver, "\HS-DATA" folder is created in the
"\WINDOWS" folder. HS data file is saved into "\HS_DATA"
folder as named "HSTEST **.HS". When message of "New
data file successfully created under file name hstest **.hs"
appears on the display, click "OK".
Chapter 6 Troubleshooting

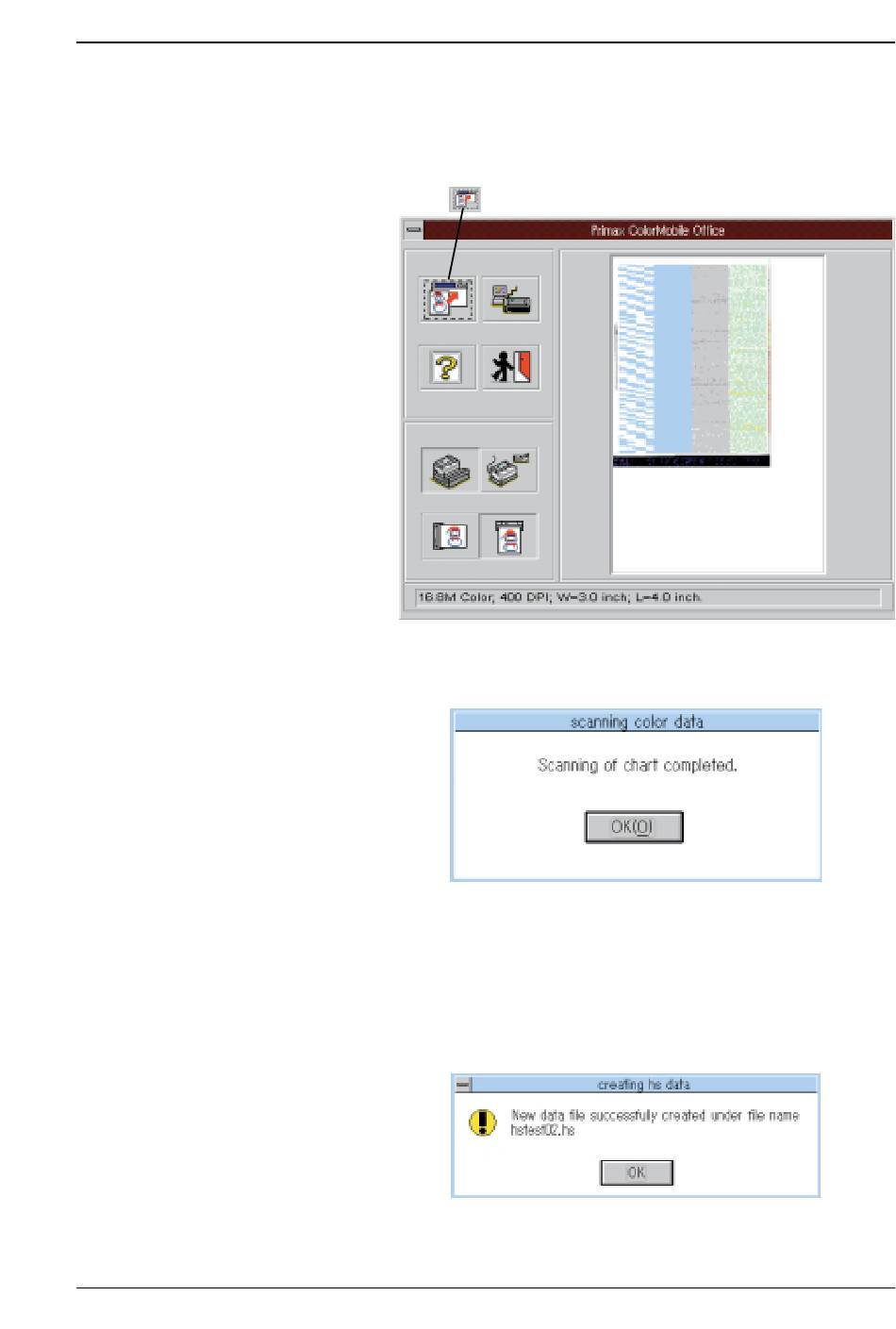

Figure 6-21
Figure 6-22
Figure 6-23
