Intermec ColorCoder V4 Service Manual page 143

3.4 Pick Up/Feeder System, cont'd.
3.4:C Rowels and Rollers, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1

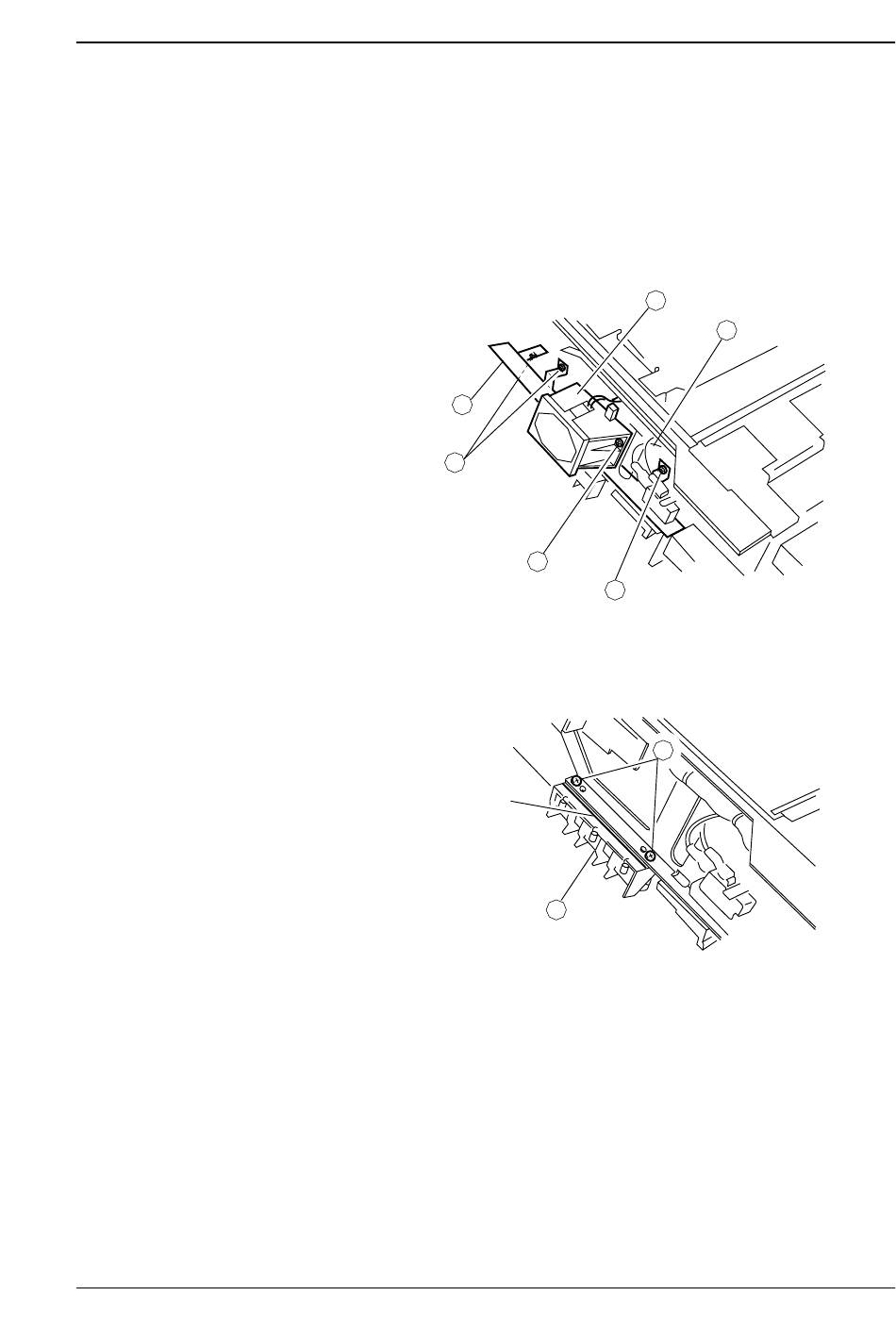

Detaching the Pinch Roller Unit
1. Remove the three mounting screws (2) of the lower right PHS
cover (1) and detach the lower right PHS cover. Remove the
mounting screw (4) of the right fan unit (3), disconnect the con-
nector (5), and then detach the right fan unit.
1
2
4
2. Mark the mounting position of the pinch roller.
3. Remove the two screws (1), and detach the pinch roller unit (2).
Marking
4. Mount the pinch roller unit to meet the marking by adjusting the
screw and fix it with the screw.
Chapter 3
3
2
Figure 3-112
1
2
Figure 3-113
Mechanical System
5
142
