4.2 Unpacking and Installation, cont'd.
4.2:C Installation (fan fold type)
No. Procedure
1 B. Carry out the steps from No.1 to 7 in chapter 4.2:B Installation
(roll type).
2 Installing the fan fold kit:

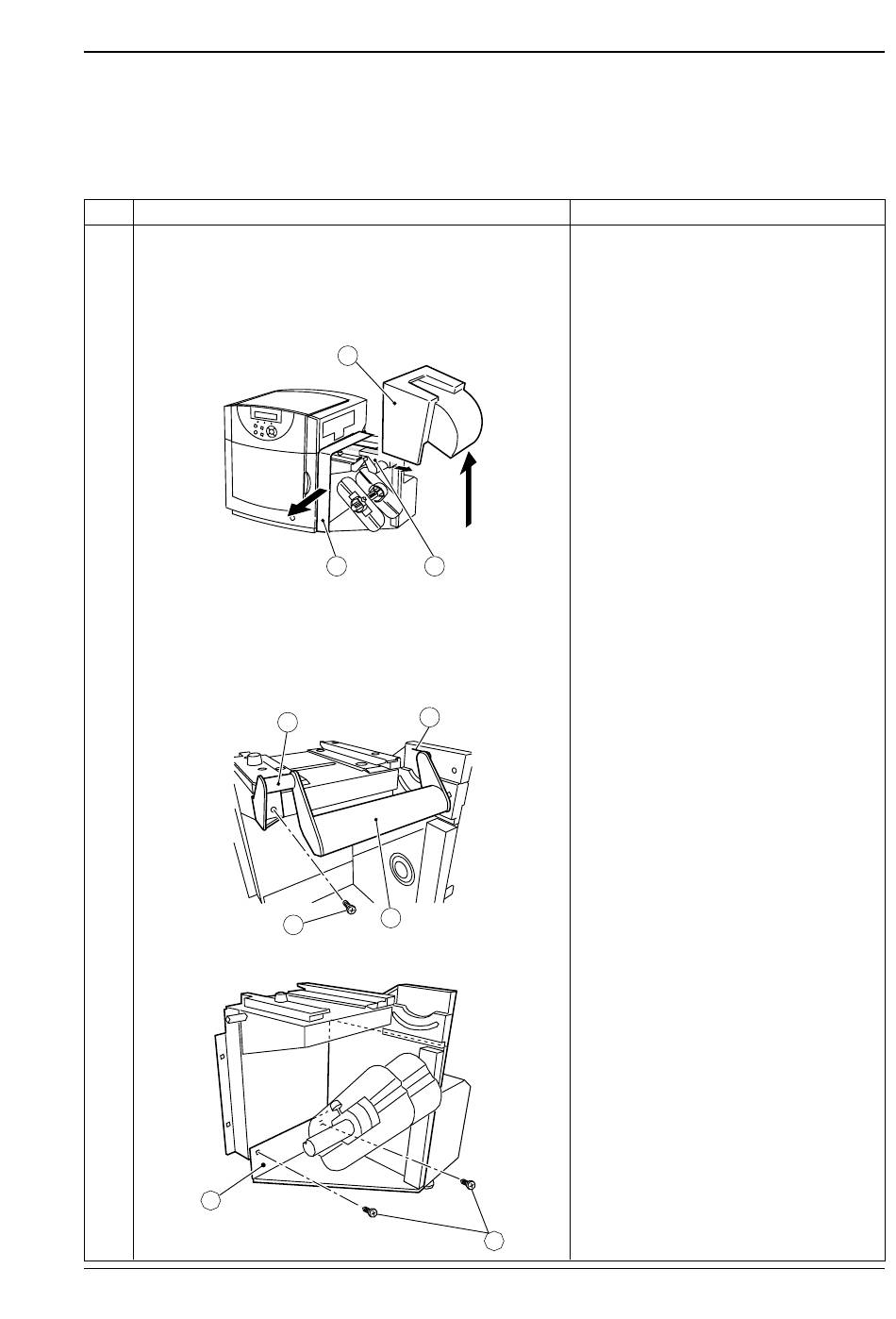

1. Remove the roll cover (1) and take out the prevent rub sheet (2)
and sensor lever retainer (3).
2. Follow the description of chapter 3.4:A Pick Up/Feeder; Roll
Unit; Removing the roll unit, to remove the roll unit from the
main unit.
3. Remove the mounting screw (2) from the lever fixing arm (1) and
take out the roll sensor lever (3) and spring (4).
4. Remove the two mounting screws (2) from the roll frame (1).
1
Intermec ColorCoder V4 – Service Manual Ed. 1
1
2 3
4
1
3
2
Inspection/Remarks
2
