3.2 Image Formation System, cont'd.
3.2:B Recovery Unit, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Installing the Recover Unit, cont'd.
5. Push the fore side of the recovery unit (1) to the plate (2), and fix
the unit with two screws (3).
2
Caution in assembling
Since the recovery unit positioning stopper (2) and the recovery support plate
[(1) of Figure 3-37] are precisely adjusted in mounting position screws.
6. Insert the recovery tube into the recovery pump completely and
connect with recovery pump.
7. Install the pinch roller unit (1) to the position marked, and fix with
the two screws (2).
Marking
1
Chapter 3 Mechanical System
3
1

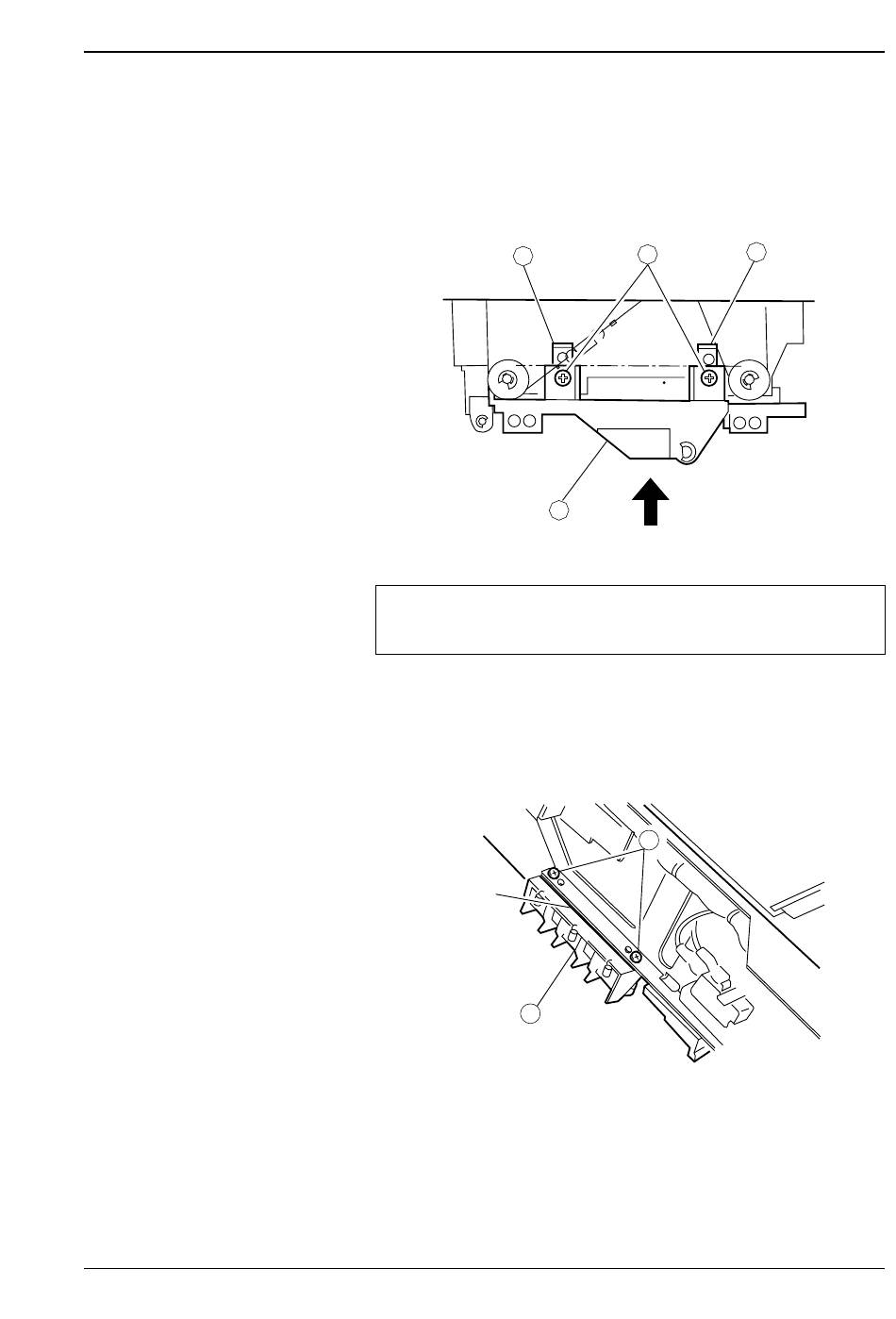

Figure 3-38
2
Figure 3-39
2
