1.3 Parts of the Machine, cont'd.

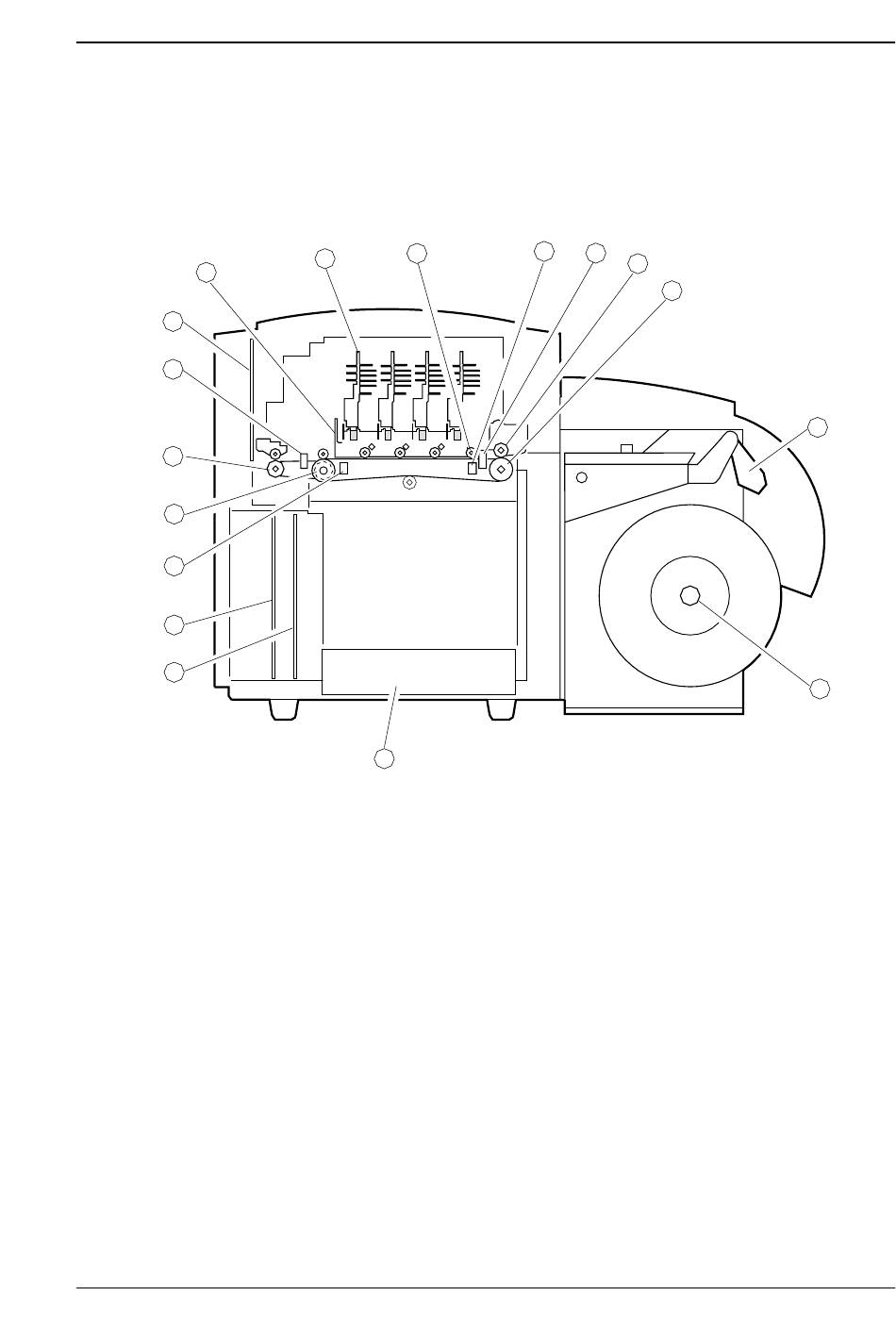

1.3:E Cross Sectional View
2
10
13
11
12
14
15
16
Intermec ColorCoder V4 – Service Manual Ed. 1
9
1
17
1. BJ head
2. Recovery unit
3. Roll sensor lever
4. Roll drive shaft
5. Follower roller
6. Pinch roller
7. TOF inlet sensor 1
8. TOF inlet sensor 2
9. Rowel units
10. Engine 2 PCB
11. Delivery roller
12. Drive roller
13. TOF outlet sensor 1
14. TOF outlet sensor 2
15. Engine 1 PCB
16. Formatter PCB
17. DC power supply unit
Chapter 1
8
7
6
5
General Description
3
4
12
