Chapter 3 Operation
Media Load – External Supply (Fan-fold)
1
18
The EasyCoder E4 can print on various types of media placed
externally behind the printer, for examples boxes of fan-folded
tickets. LinerLess media cannot be placed externally.
For smooth operation, ensure that the external media supply is
placed lower than the printer's intake slot.
When using an external media supply, take care to protect the
media from dust, dirt or other foreign particles, that can impair
the printout quality or cause unnecessary wear to the printhead.
Depending on brand and quality, all direct thermal media are
more or less sensitive to heat, direct sunlight, moisture, oil,
plasticizers, fat, and other substances. You should protect them
accordingly.

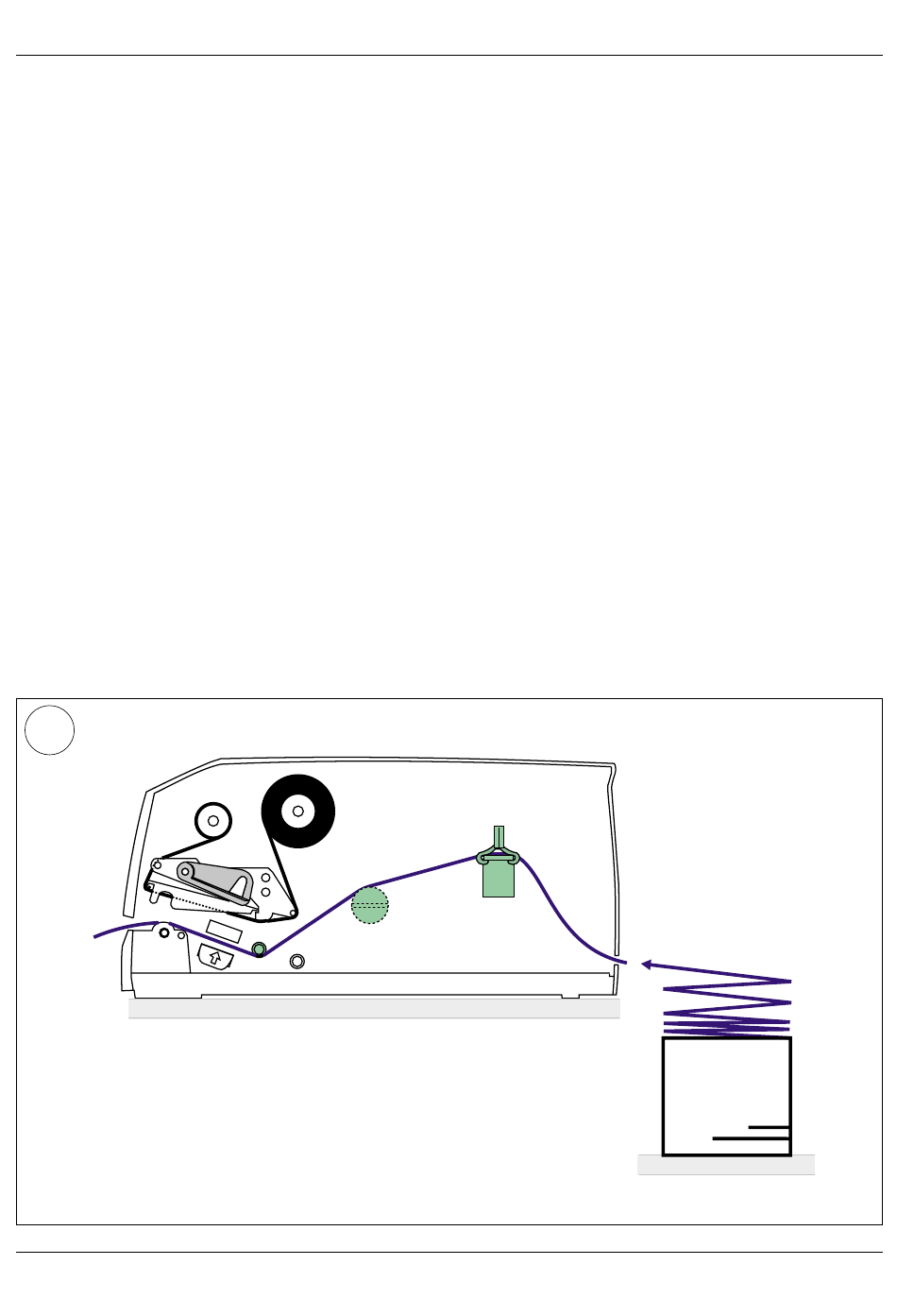

This diagram shows the media path from an external supply.
