3.4 Pick Up/Feeder System, cont'd.
3.4:A Roll Unit, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1

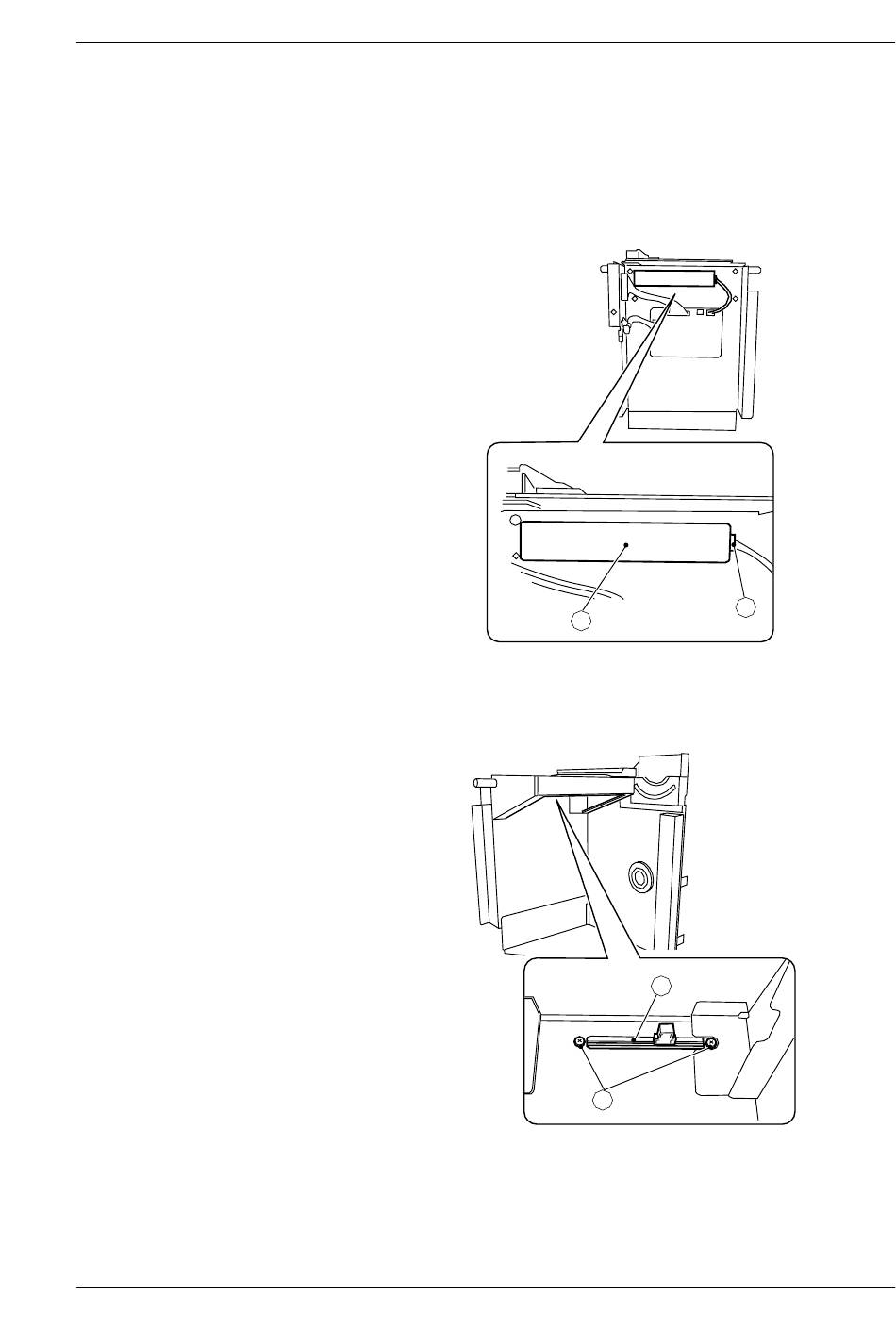

Removing the paper width detection slide rheostat unit
1. Disconnect the connector J64 (2) from the paper width detection
slide rheostat unit (1).
2. Remove the mounting screw (2) from the paper width detection
slide rheostat unit (1) and detach the paper width detection slide
rheostat unit.
Chapter 3 Mechanical System
2
1
Figure 3-89
1
2
Figure 3-90
