6.3 Test Print, cont'd.
6.3:B Test Patterns, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1

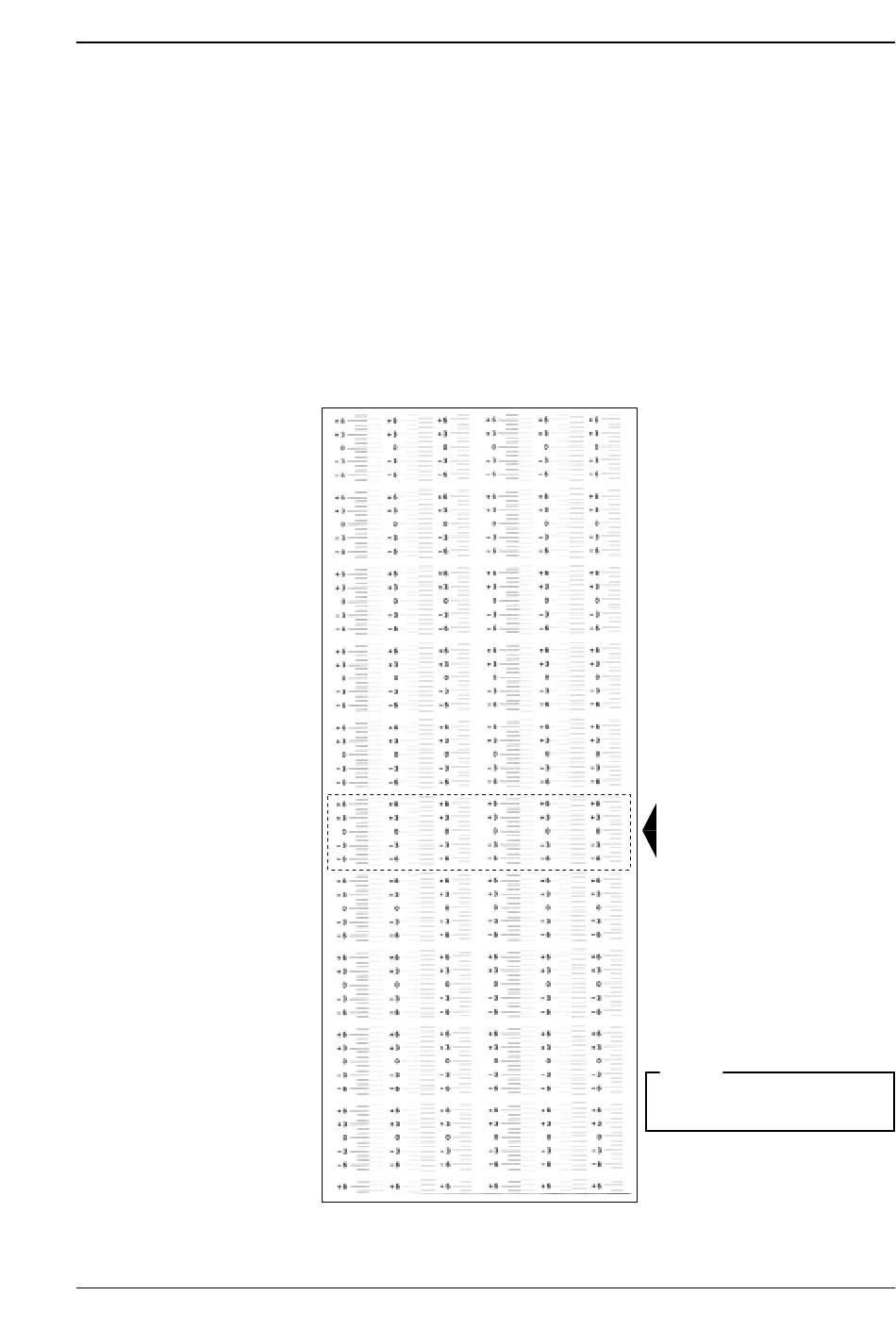

NOZ. ADJ. PATTERN 2 (Registration Adjustment)
"NOZ. ADJ. PATTERN 2" is a repeated vertical registration
adjustment pattern of "NOZ. ADJ. PATTERN". Based on the
printed "NOZ. ADJ. PATTERN 2", only portions of the registra-
tion of a logo, for instance, to be corrected can be adjusted. The
method of registration adjustment is the same as for the vertical
registration adjustment. However, only the values of the portions to
be adjusted are read and added to the current set values (see 6.3:B
Vertical Registration Adjustment).
K–C C–M M–Y K–C
Chapter 6
C–M M–Y
Read values on this line
when you adjust the registration
such as a logo at this position.
Caution:
Since the adjustment is partially made,
rtegistration may get out of position in
other portions after the change.
Figure 6-7
