3.4 Pick Up/Feeder System, cont'd.
3.4:B Feeder Unit, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1

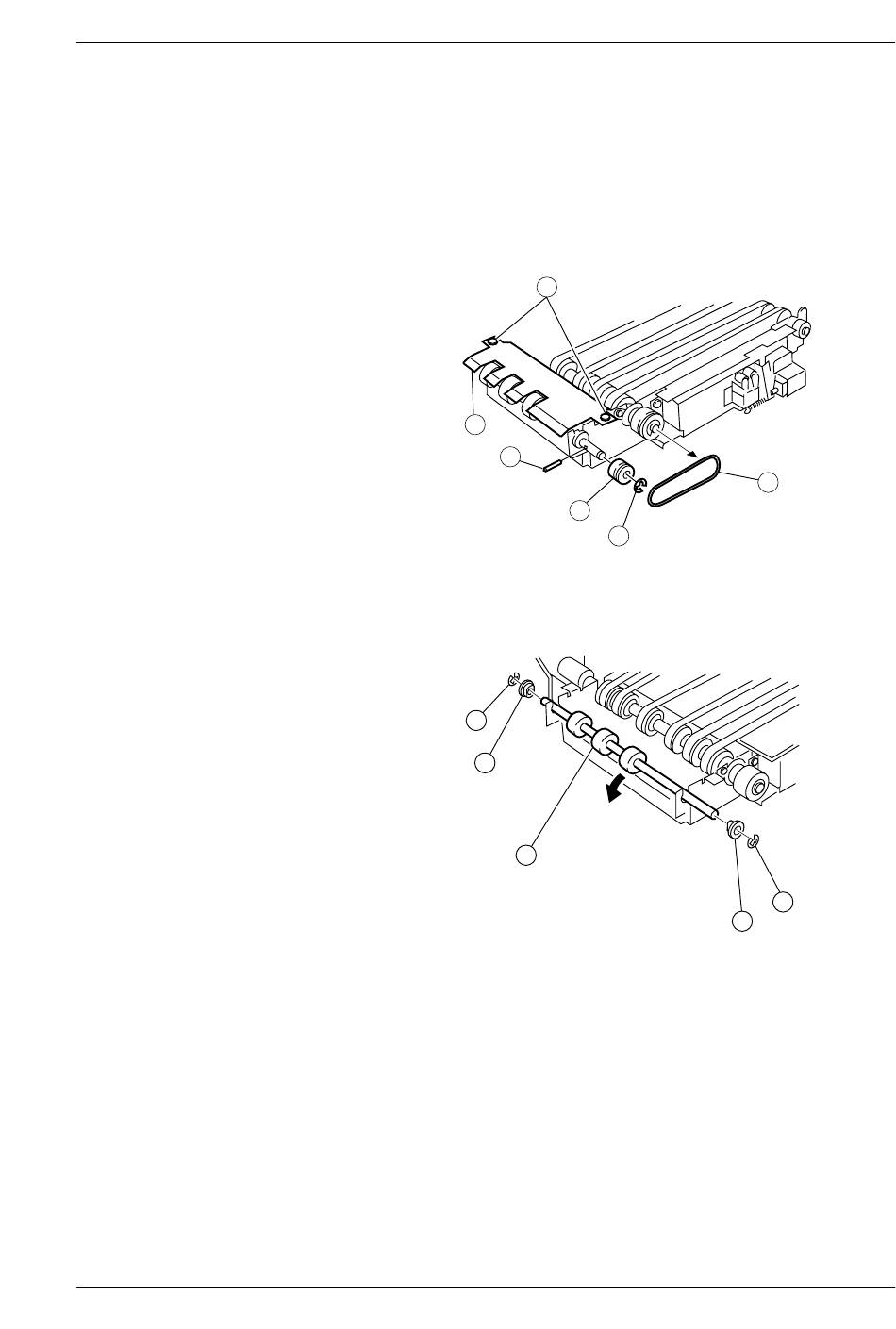

Detaching the Delivery Roller
1. Remove the two screws (1) and the ejecting guide (2).
2. Remove the delivery belt (3), disengage the E-ring (4), and
remove the pin (5) and the drive pulley (6).
1
2
5
3. Disengage the two E-rings (1), disengage the bushings (2), and
detach the delivery roller (3).
1
2
3
Chapter 3 Mechanical System
6
4
Figure 3-101
2
Figure 3-102
3
1
