3.4 Pick Up/Feeder System, cont'd.
3.4:A Roll Unit, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Removing the roll holder PCB
1. Disconnect the connectors J601-J603 (2) from the roll holder
PCB (1), and detach the roll holder PCB from the roll holder
removing the claws of the four locking card spacers (3).
3
2
3
Chapter 3 Mechanical System
2
1

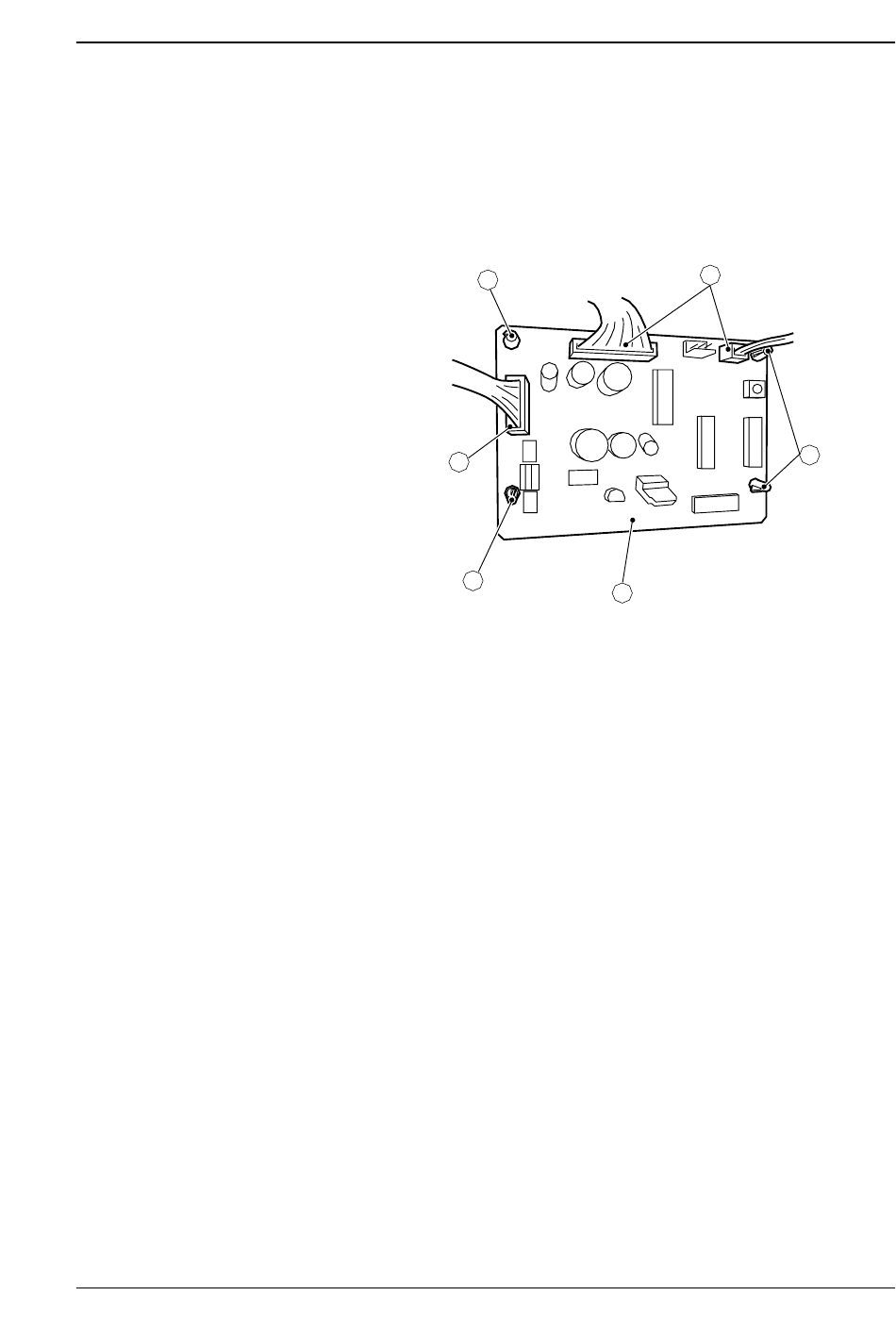

Figure 3-91
3
