3.5 PCBs, cont'd.
3.5:E DC Power Supply Unit,
cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Detaching the DC Power Supply Unit, cont'd.
5. Remove the three mounting screws (2) from the DC power
supply unit (1), and detach the DC power supply unit by pulling
it toward the front side.
1
2
Chapter 3 Mechanical System

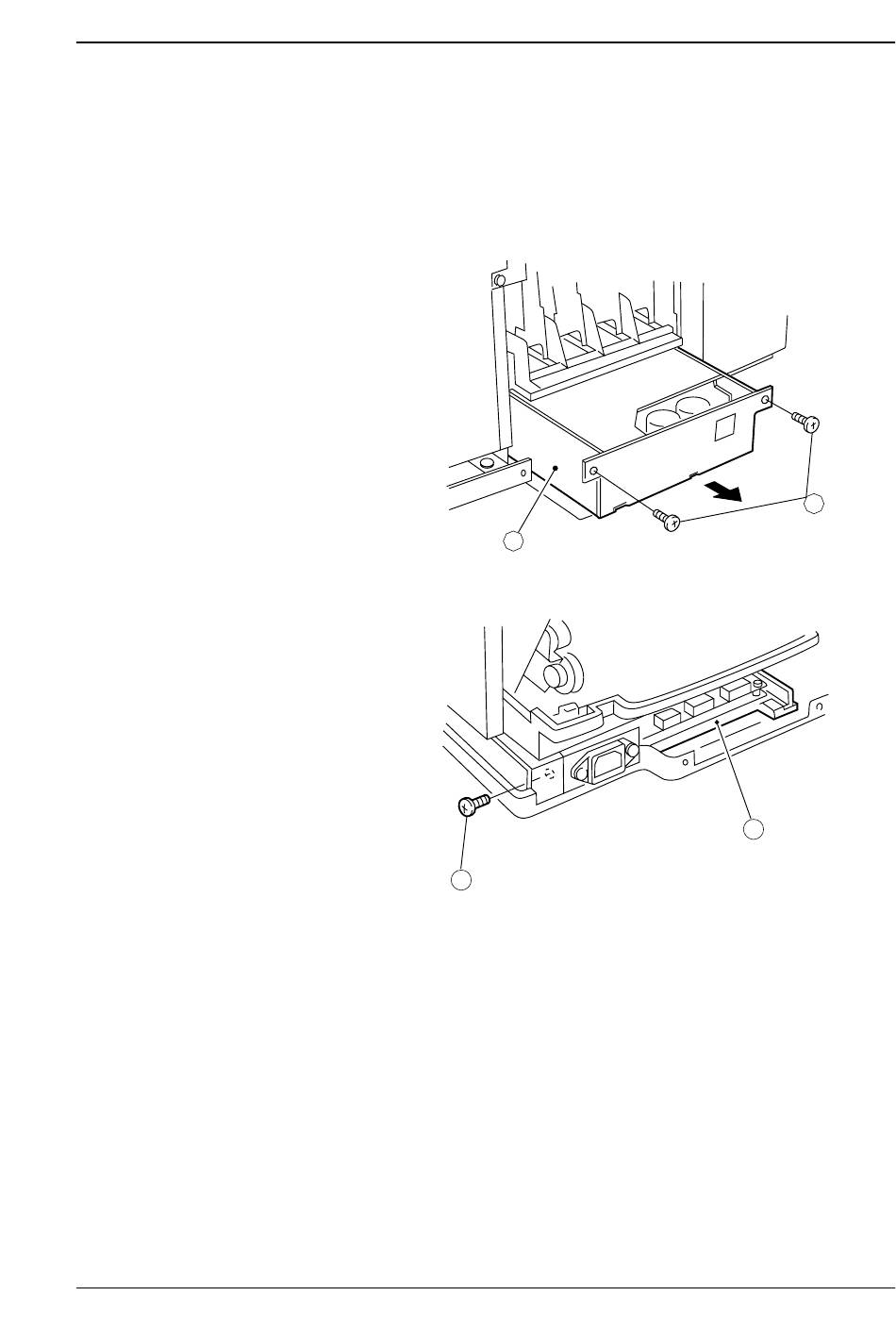

Figure 3-124
1
Figure 3-125
2
