6.4 Head Shading, cont'd.
6.4:B Procedure to Make HS Data,
cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Partial rewrite of specific BJ HS, cont'd.
B. "Read in from scanner", cont'd.

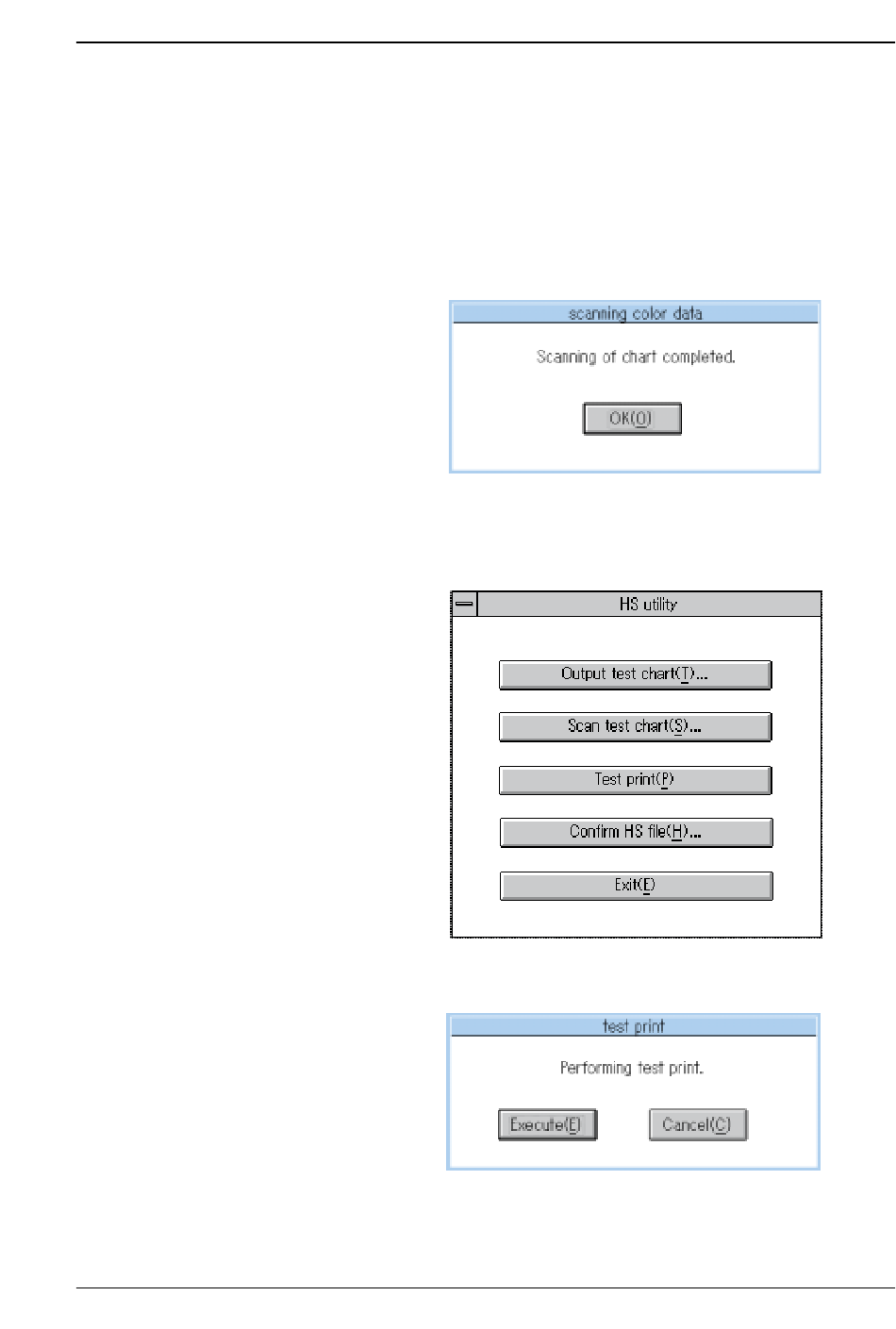

2. When "Scanning of chart completed." appears on the display,
click "OK". After displaying "New data file is created", Re-click
"OK".
3. Click "Test print". When "Performing test print" appears on the
display, click "Execute". Make sure the efficiency of the HS
with the test chart output.
Chapter 6 Troubleshooting
Figure 6-34
Figure 6-35
Figure 6-36
