Intermec ColorCoder V4 Service Manual page 172

4.2 Unpacking and Installation, cont'd.
4.2:F Relocation and
Transportation, cont'd.
Procedure
No.

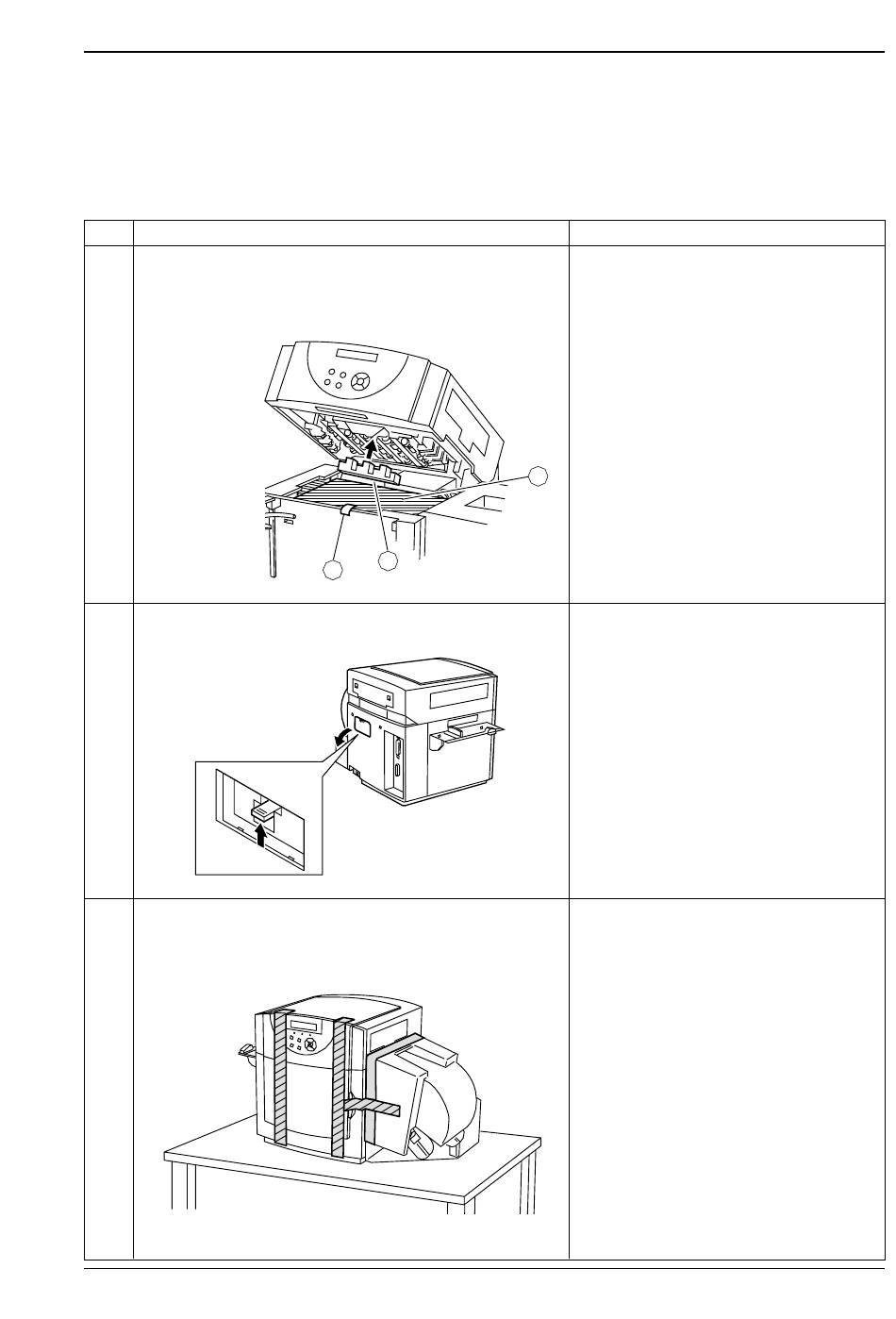

1. Open the PHS unit. Lay two or three sheets of lint free wiper (1)
10
on the feed unit platen and secure them with filament tape (2).
2. Attach the recovery unit packing (3) to the recovery unit.
11 Open the sub cover in the rear side of the printer, push up the
opening/closing arm (green coloured lever) to "TRANSPORTA-
TION MODE".
1. Close the PHS unit.
12
2. Secure the front side (3 positions), rear sub-cover (1 position) and
roll cover rear (1 position) with filament tape.
