3.3 Ink Supply System, cont'd.
3.3:B Pump Unit, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Detaching the Pump Unit, cont'd.
9. Remove the four mounting screws (2) from the rear crossmember
(1), and disconnect the wire clip (3) and wiring cable, and then
detach the rear crossmember.
10. Remove the two mounting screws (2) from the lower ink room
(1).
Chapter 3 Mechanical System
3
1
2

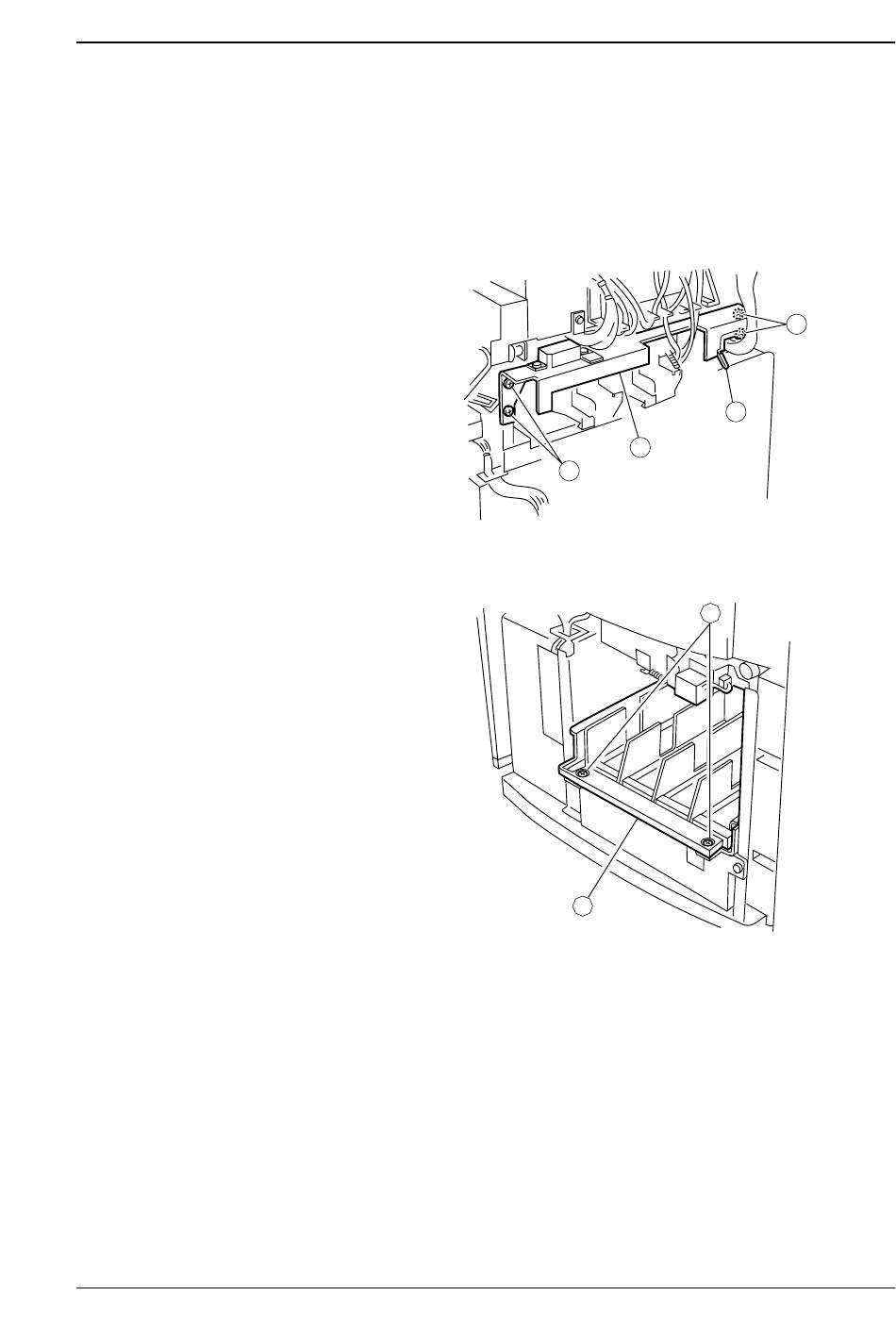

Figure 3-62
2
1
Figure 3-63
2
