6.4 Head Shading, cont'd.
6.4:B Procedure to Make HS Data,
cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Partial rewrite of specific BJ HS, cont'd.
5. Select "Hs file name" and "Color to be modified" and click
"OK".
6. "Select method to be used for extraction of color data" appears
on the display. Select either of the following procedures A or B,
and carry out the each procedure.
A: "Extracting from existing HS file"
- This is used to extract the colour data needs to be modified
from another HS file already created.
B: "Read-in from scanner"
- This is used to print a new test chart and read it on a scanner.
Chapter 6 Troubleshooting

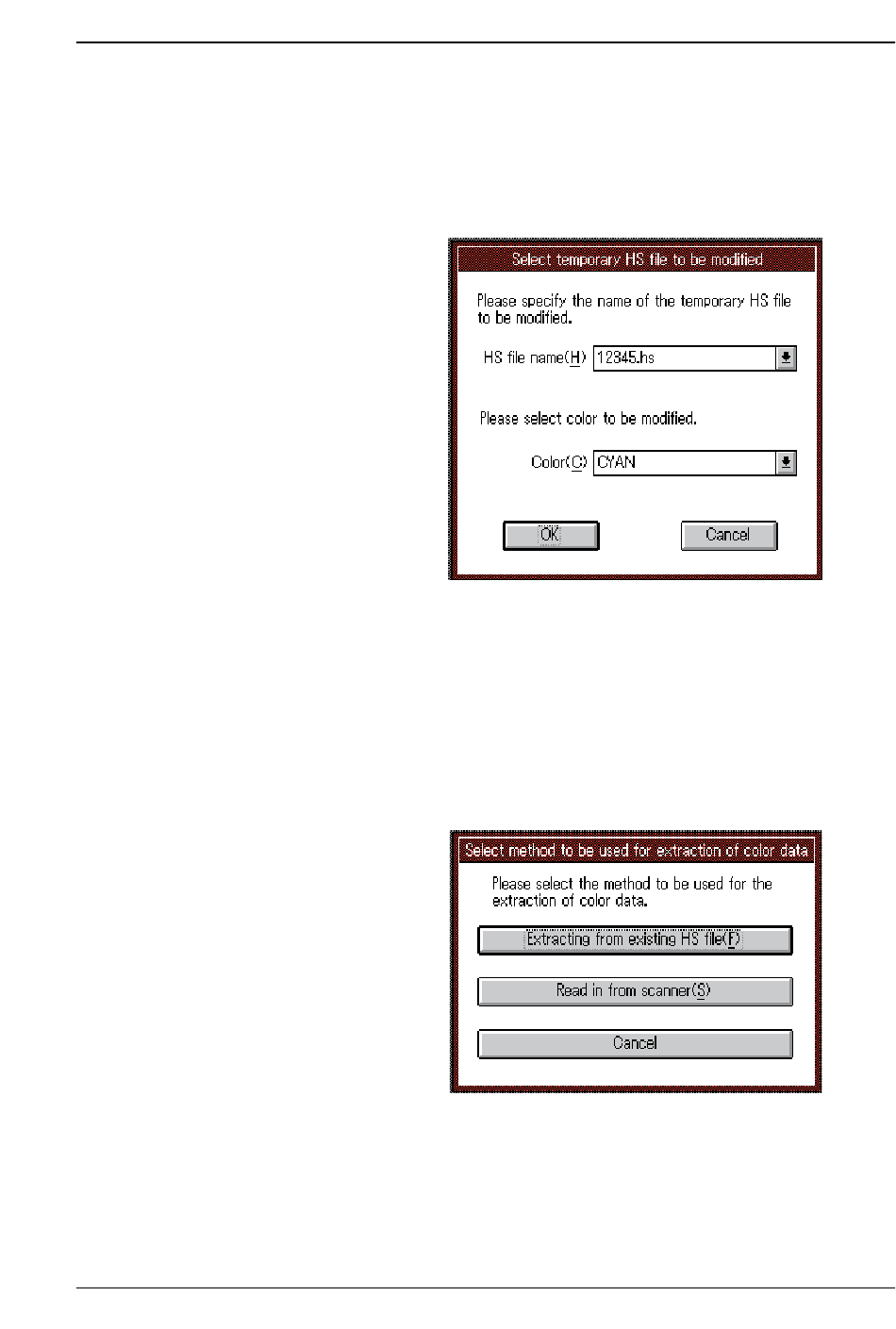

Figure 6-30
Figure 6-31
