3.2 Image Formation System, cont'd.
3.2:B Recovery Unit, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Installing the Recover Unit, cont'd.

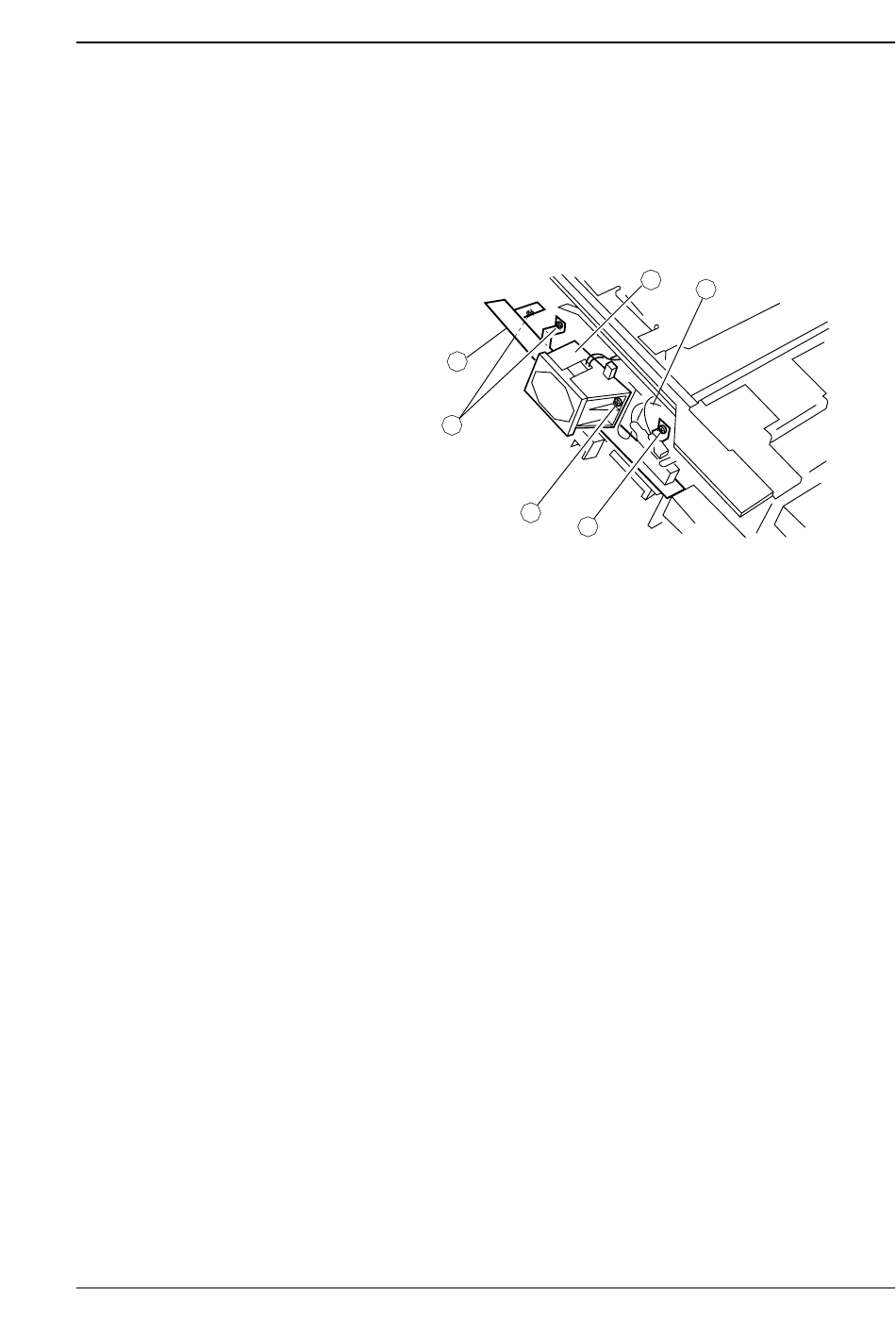

8. Install the right fan unit (1), and fix with one screw (2). Connect
with the connector (3). Install the lower-right PHS cover (4) with
three screws (5).
4
5
2
9. Install the BJ head (see Chapter 3.2:A Installing the BJ head ).
Chapter 3 Mechanical System
1
3
5
Figure 3-40
