3.3 Ink Supply System, cont'd.
3.3:B Pump Unit, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Detaching the Parts and Units, cont'd.

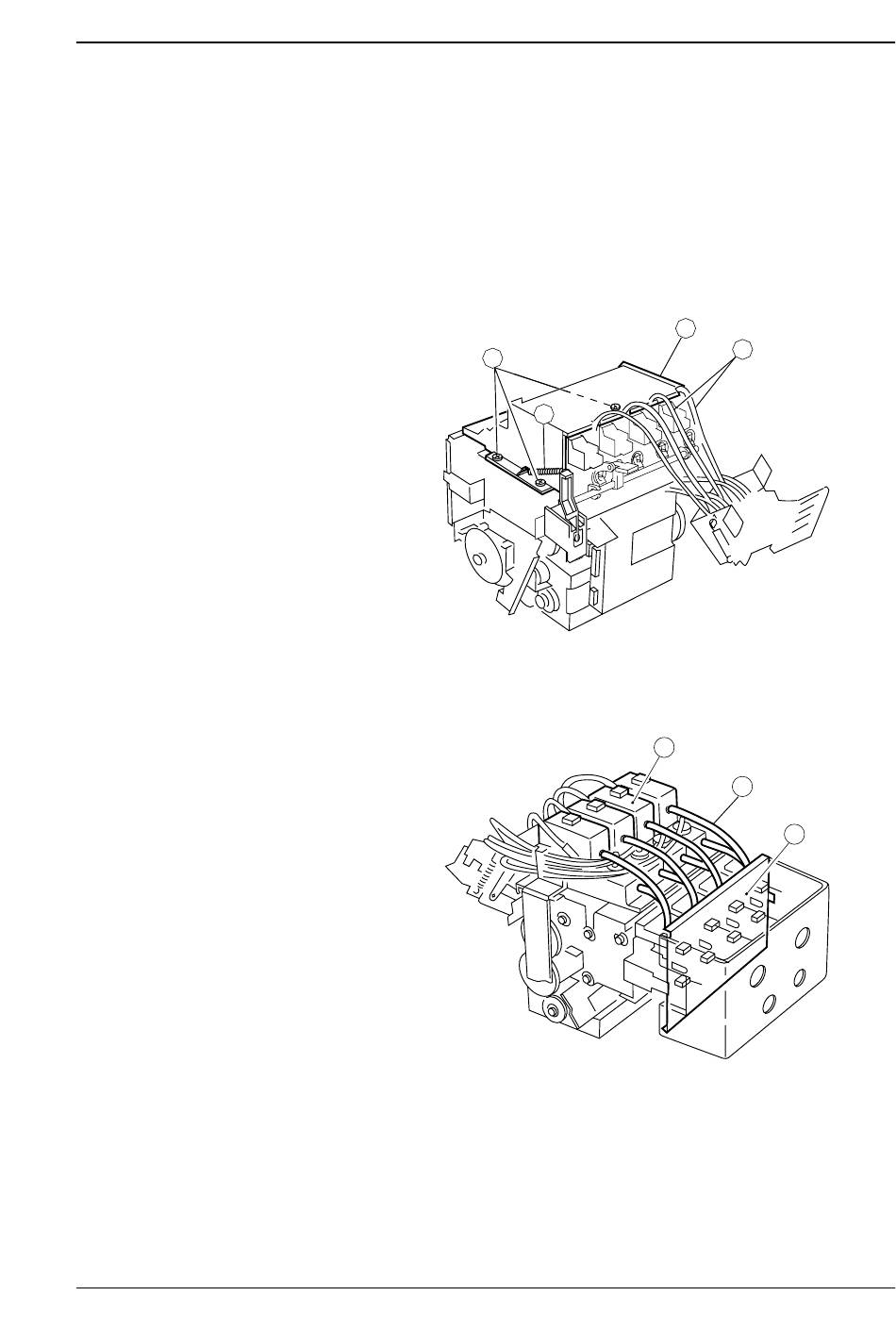

Detaching the Needle Block
1. Unhook the spring (1).
2. Remove the three mounting screws (3) from the pump cover (2),
remove the suction tube (4) from the claw, and detach the pump
cover.
3
1
3. Remove the eight tubes (3) which are extending from the needle
block (1) to the sub-tanks (2).
Chapter 3 Mechanical System
2
4
Figure 3-70
2
3
Figure 3-71
1
