2.6 Control Panel

2.6:A Outline
Ready lamp
Pause key
On-line key
Stop key
Intermec ColorCoder V4 – Service Manual Ed. 1
The control panel of the printer is provided with four LEDs, one
LCD (liquid crystal display), and eight switches.
The control panel is connected to the formatter PCB, and has the
following functions.
• LCD displays status, errors of the printer.
• LEDs displays operating conditions of the printer.
• Eight switches control printing conditions of the printer, such as
start, stop and pause.
Display panel
On-line lamp
READY
PAUSE
STOP
Left cursor key
Feed key

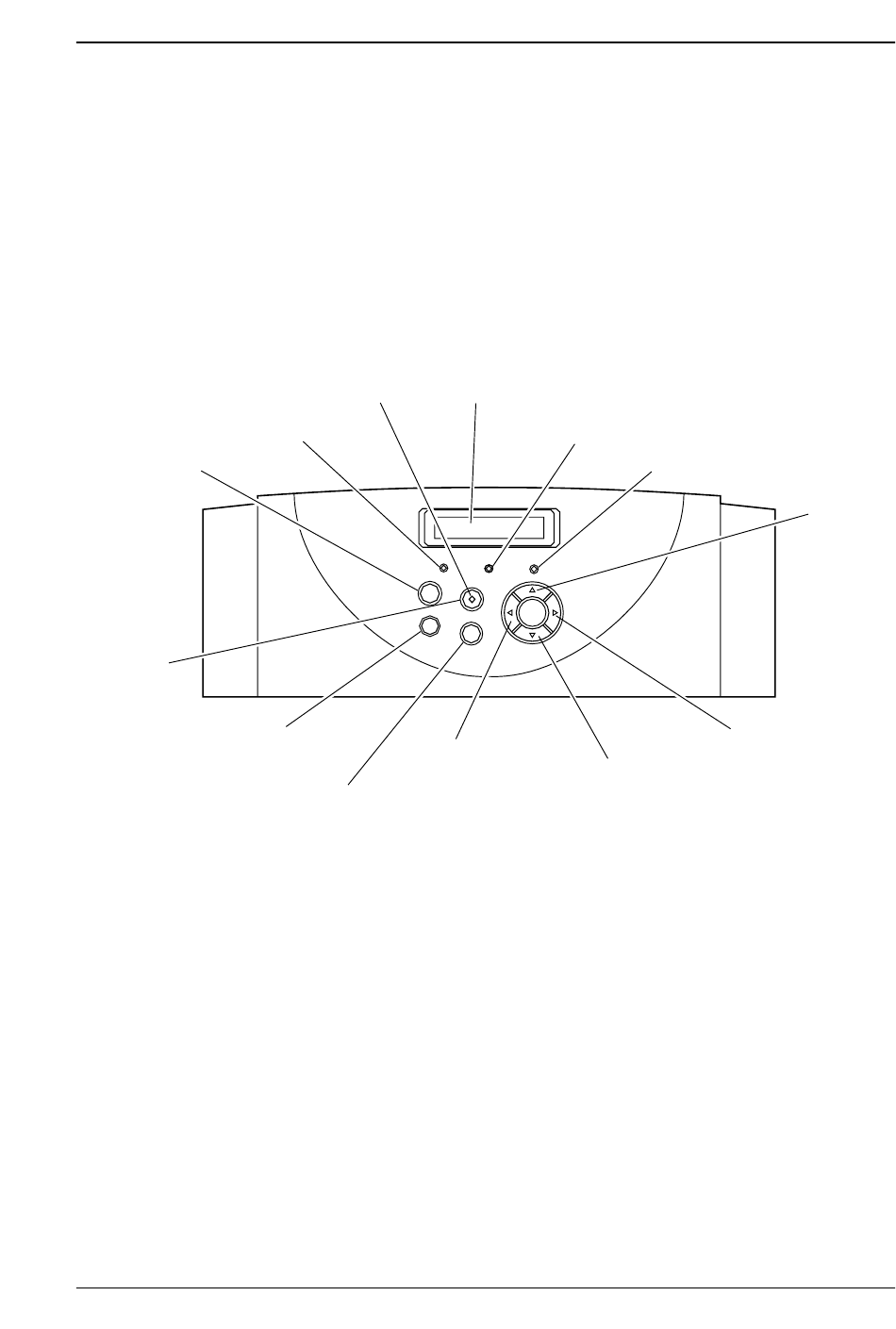

Figure 2-57
Chapter 2
Data lamp
DATA ERROR
MENU
ON LINE
FEED
ENTER
Enter key
Operation and Timing
Error lamp
Menu key
Right cursor key
