3.4 Pick Up/Feeder System, cont'd.
3.4:A Roll Unit, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1

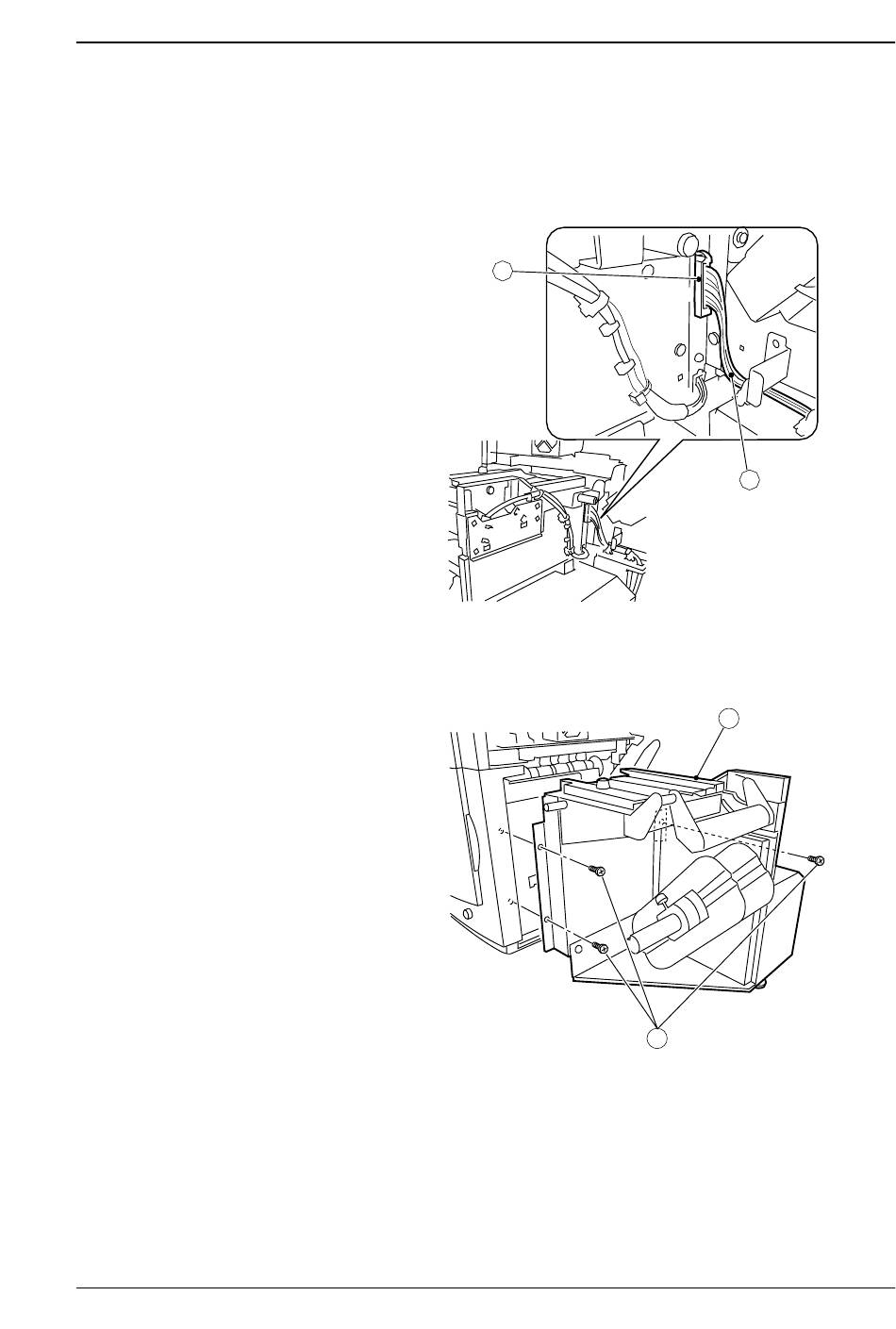

Removing the Roll Unit, cont'd.
4. Disconnect the connector J65 (2) of the roll harness (1).
2
5. Remove the three screws (2) from the roll unit and remove the
roll unit (1) from the printer.
Chapter 3 Mechanical System
1
Figure 3-78
1
2
Figure 3-79
