3.2 Image Formation System

3.2:A BJ Head
Intermec ColorCoder V4 – Service Manual Ed. 1
Caution:
As the components of the image formation unit (BJ head, recovery
unit, etc.) are removed, the PHS unit becomes lighter in weight and
may jump up suddenly; care should be paid.
Detaching the BJ Head
Caution:
Installing the head requires the operation of service mode. The control panel
and other electrical components and connectors must all be connected so that
when the power switch is turned on, the machine is ready for normal operation.
Note:
Always make sure efficiency of head shading, when you have replaced the
heads of C, M & Y or adjusted horizontal registration. If it is necessary, make
a new data of the head shading. See Chapter 6.4. Head Shading.
1. Detach the PHS cover (see Chapter 3.1. Externals).
2. Loosen the one mounting screw (2) on the head upper plate (1),
and slide the head upper plate in the right direction to disengage
the claw (3).
2
Chapter 3 Mechanical System
1

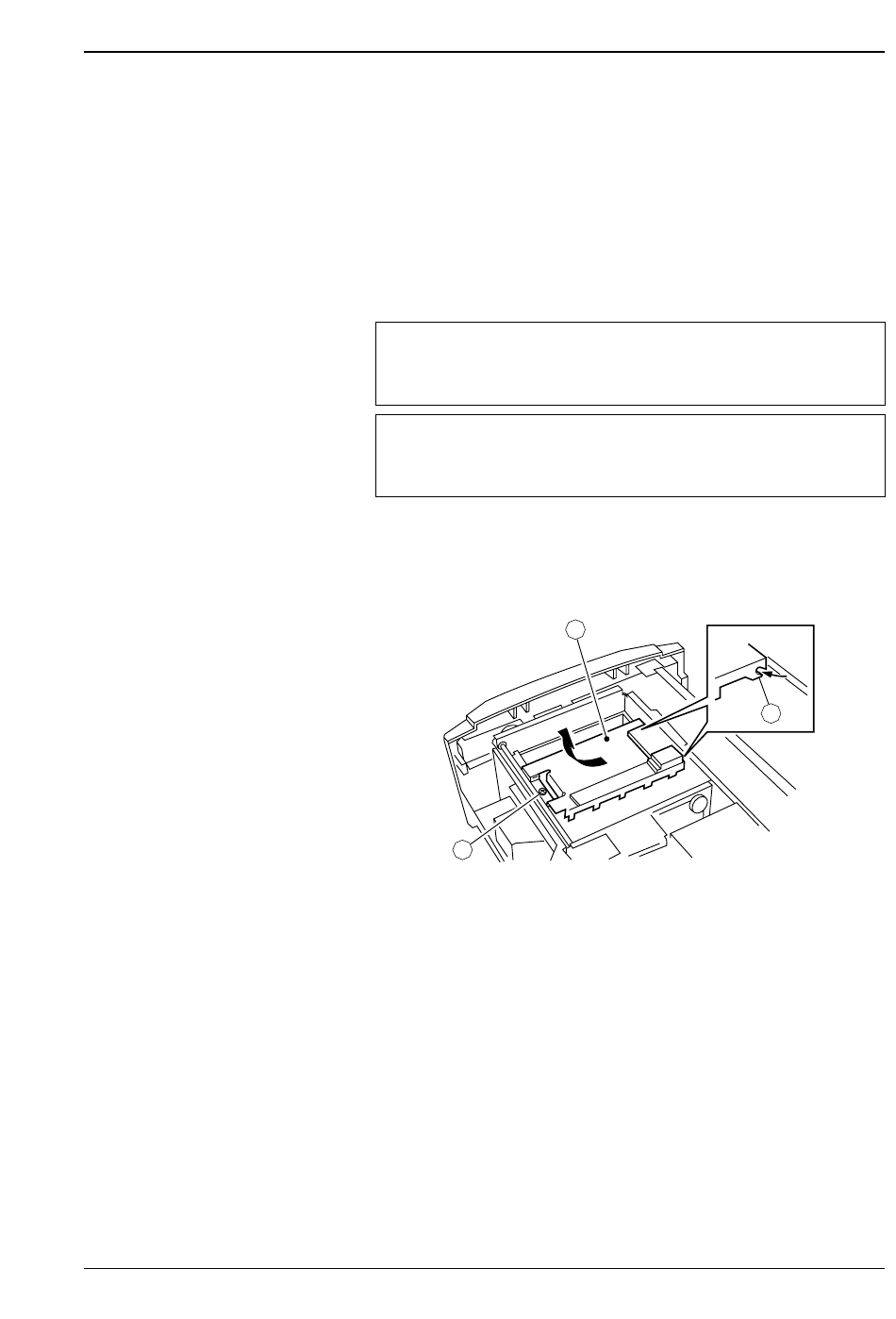

Figure 3-9
3
83
