2.4 Pick Up/Feeder System, cont'd.
2.4:D Feeding Operation, cont'd.
POWER ON START
Sequence INIT HDCL MVPR
Feeder motor
TOF inlet sensor
TOF outlet sensor
Roll sensor *1
Roll motor *1
BJ head
*1. Only when roll paper is used
Intermec ColorCoder V4 – Service Manual Ed. 1
Outline of Operation
The following is an outline of how the paper is picked up and fed.
First printing
HDPRT PD
Motor forward rotation

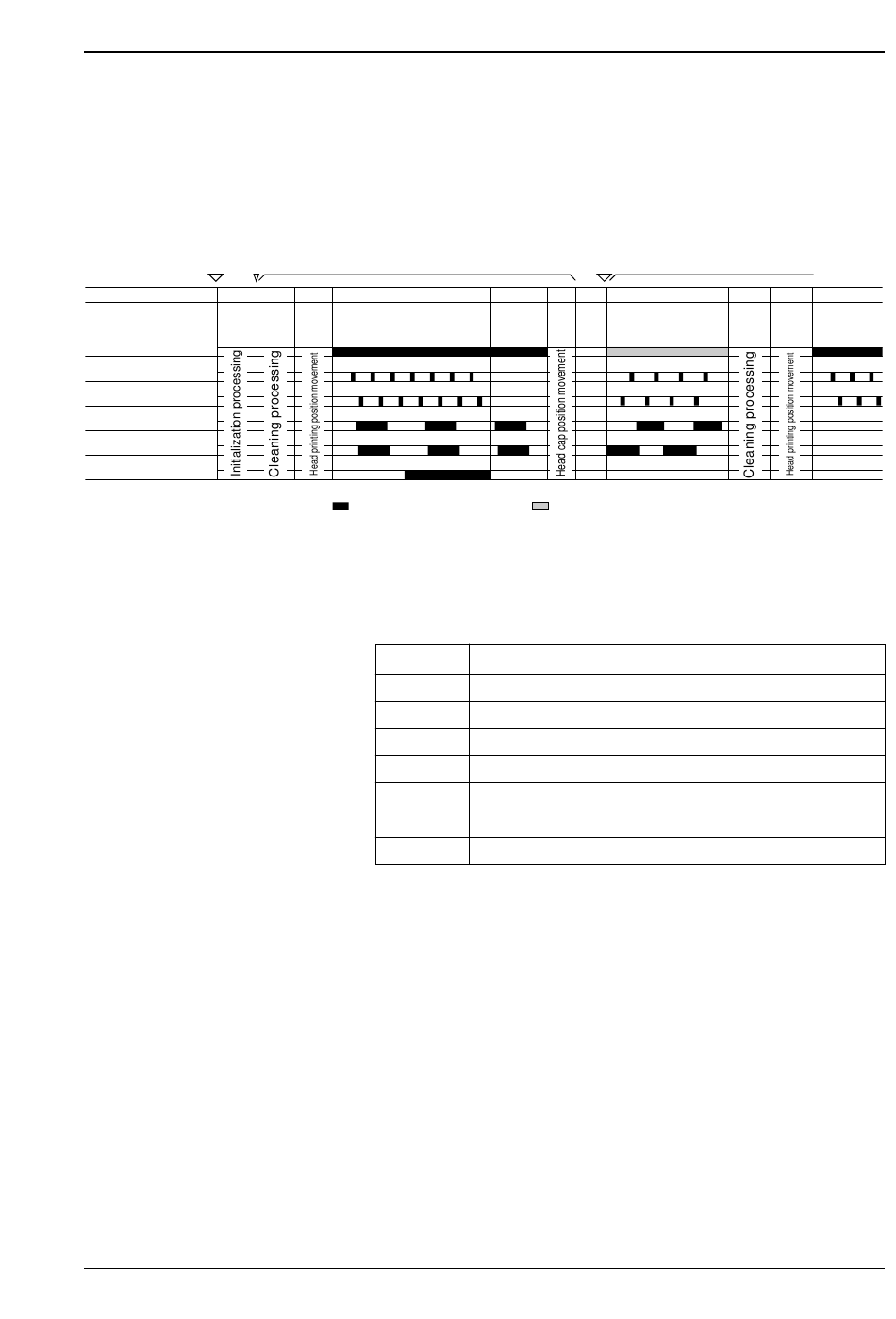

Figure 2-53
Sequence Operation
INIT Head/recovery system initialization operation
HDCL Head cleaning processing
MVPR Printing position movement operation
HDPRT BJ head printing operation
PD Delivery operation after printing
MVCP BJ head/recovery system cap position movement
SWBK Paper back feed operation
Chapter 2 Operation and Timing
Second printing
START
MVCP STBY SWBK
Motor backward rotation
Table 2-4
HDCL MVPR HDPRT
