3.2 Image Formation System, cont'd.
3.2:A BJ Head, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Detaching the BJ Head, cont'd.

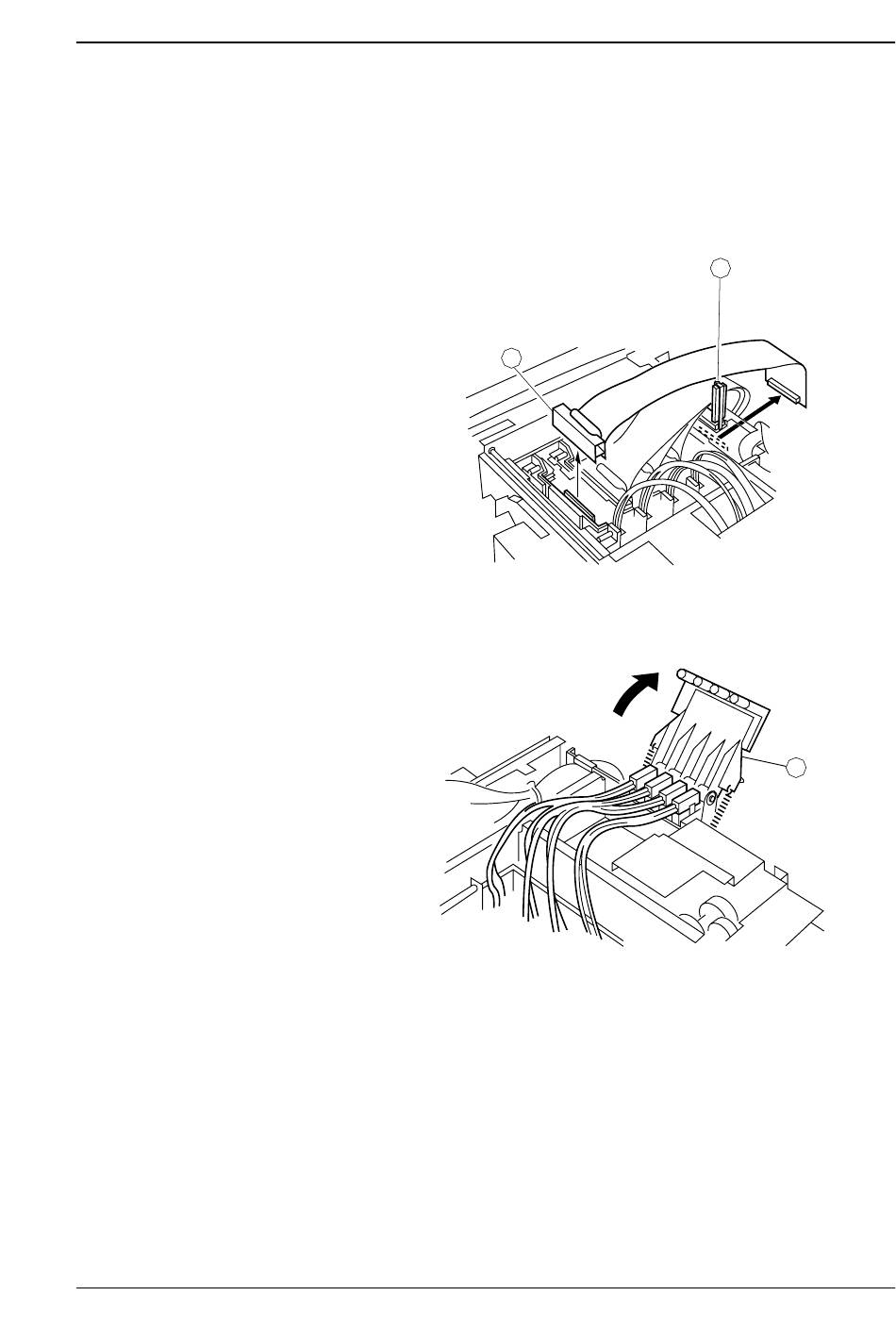

3. Open the ferrite core (1), disconnect the connector (2) from the
upper part of the BJ head and the connector of the engine 2 PCB,
and detach the flexible cable.
2
4. Release the tube release lever (1).
Caution:
Never open the tube release lever, if it's not necessary. If opened, carry out the
procedure for initial ink fill after re-assembling in compliance with Chapter
3.3:B Punp Unit, Precautions in assembling (last page).
Chapter 3 Mechanical System
1
Figure 3-10
Figure 3-11
1
