6.4 Head Shading, cont'd.
6.4:B Procedure to Make HS Data,
cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Creating new HS data for C, M, and Y, cont'd.

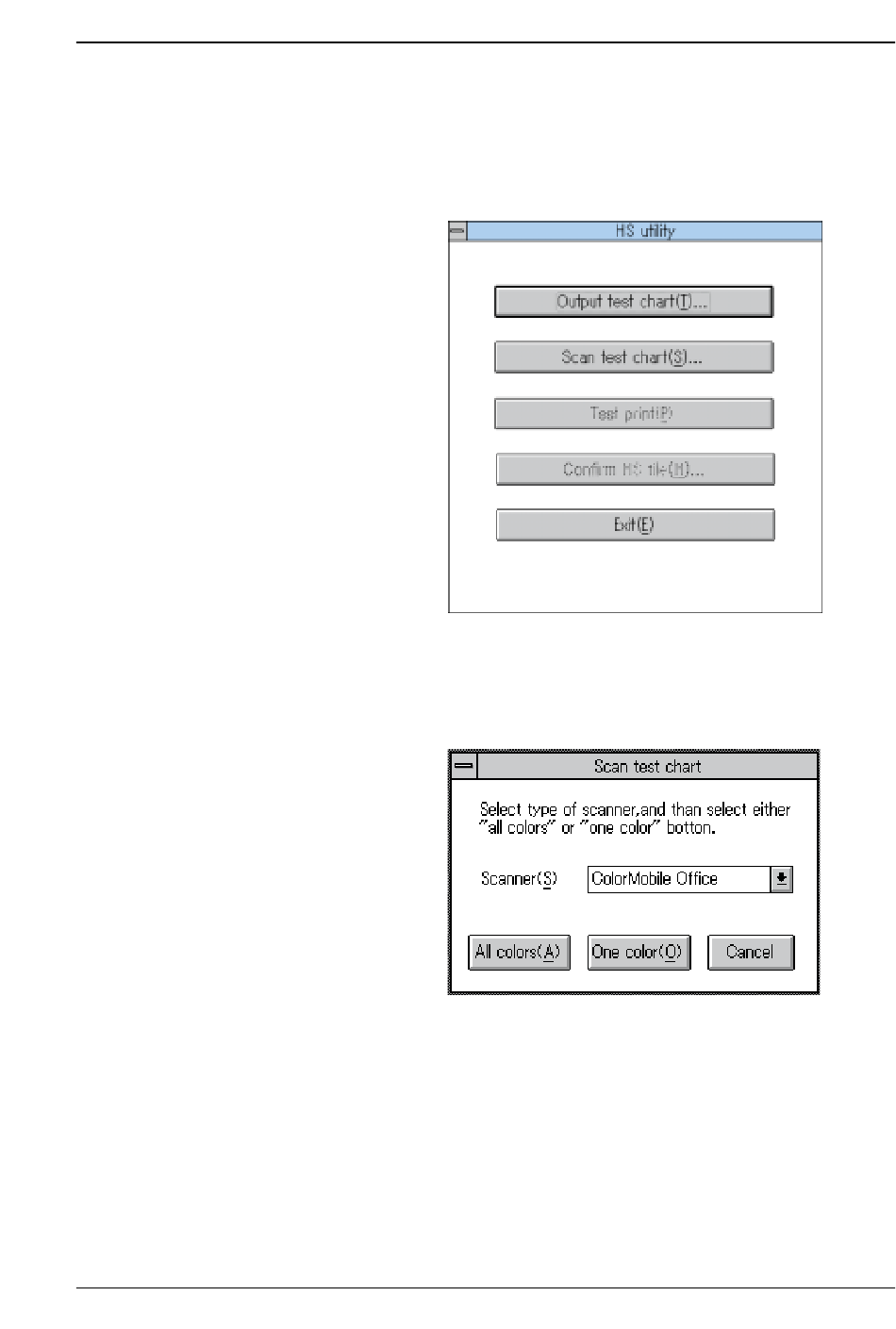

3. Click "Scan test chart"
4. Select your scanner and Click "All colors". "One color" is
clicked for making the HS data for part of the colors registered
(a given BJ head).
5. Press the START/STOP button of the scanner.
Chapter 6 Troubleshooting
Figure 6-19
Figure 6-20
